Name: VS-2N5205
Brand: Vishay General Semiconductor - Diodes Division
SKU: VS-2N5205
Price: 9.93 USD
Availability: InStock

REF: VS-2N5205 Vishay General Semiconductor - Diodes Division

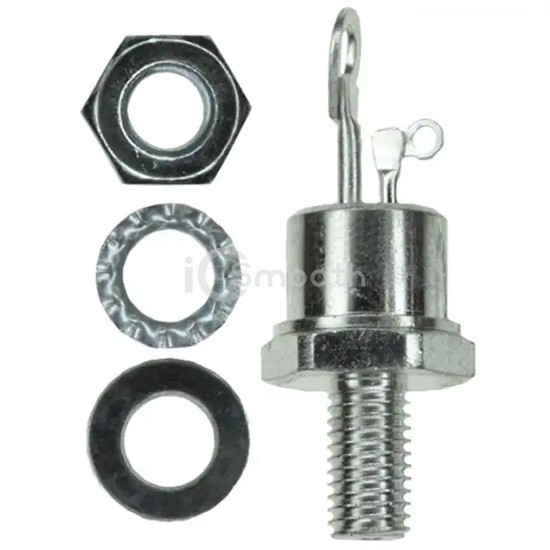

VS-2N5205

Vishay General Semiconductor - Diodes Division

SCR 800V 35A TO208AA

VS-2N5205 is a Thyristors - SCRs manufactured by Vishay General Semiconductor - Diodes Division. SCR 800V 35A TO208AA. Key specifications: mounting type Chassis, Stud Mount, operating temperature -40°C ~ 125°C, package / case TO-208AA, TO-48-3, Stud.

Datasheet Request a Quote

In Stock: 5,544

Specifications

15 parameters

Product Status	Active
Voltage - Off State	800 V
Voltage - Gate Trigger (Vgt) (Max)	2 V
Current - Gate Trigger (Igt) (Max)	40 mA
Voltage - On State (Vtm) (Max)	2.3 V
Current - On State (It (AV)) (Max)	22 A
Current - On State (It (RMS)) (Max)	35 A
Current - Hold (Ih) (Max)	200 mA

Current - Off State (Max)	2.5 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)	285A, 300A
SCR Type	Standard Recovery
Operating Temperature	-40°C ~ 125°C
Mounting Type	Chassis, Stud Mount
Package / Case	TO-208AA, TO-48-3, Stud
Supplier Device Package	TO-208AA (TO-48)
