VS-249NQ150PBF

In Stock: 9,264

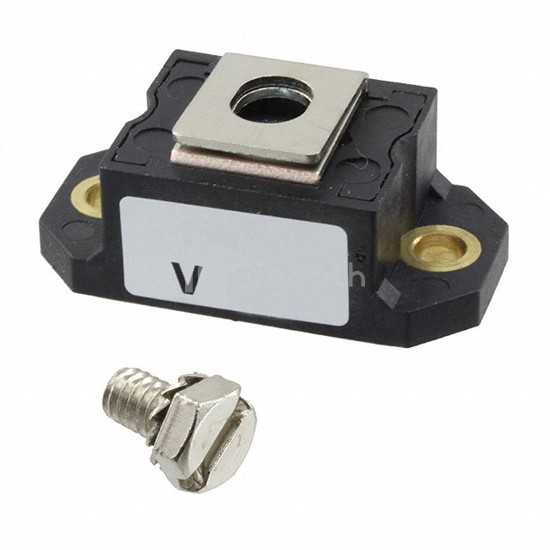

VS-249NQ150PBF - Vishay General Semiconductor - Diodes Division - Diodes - Rectifiers - Single
REF: VS-249NQ150PBF Vishay General Semiconductor - Diodes Division
VS-249NQ150PBF

Vishay General Semiconductor - Diodes Division

DIODE SCHOTTKY 150V 240A HALFPAK

VS-249NQ150PBF is a Diodes - Rectifiers - Single manufactured by Vishay General Semiconductor - Diodes Division. DIODE SCHOTTKY 150V 240A HALFPAK. Key specifications: mounting type Chassis Mount, package / case D-67 HALF-PAK.

Datasheet Request a Quote

In Stock: 9,264

Specifications

13 parameters
Product StatusActive
Diode TypeSchottky
Voltage - DC Reverse (Vr) (Max)150 V
Current - Average Rectified (Io)240A
Voltage - Forward (Vf) (Max) @ If1.21 V @ 240 A
SpeedFast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)-
Current - Reverse Leakage @ Vr6 mA @ 150 V
Capacitance @ Vr, F6000pF @ 5V, 1MHz
Mounting TypeChassis Mount
Package / CaseD-67 HALF-PAK
Supplier Device PackageD-67 HALF-PAK
Operating Temperature - Junction-55°C ~ 175°C
