Name: VS-1N5820TR
Brand: Vishay General Semiconductor - Diodes Division
SKU: VS-1N5820TR
Availability: InStock

REF: VS-1N5820TR Vishay General Semiconductor - Diodes Division

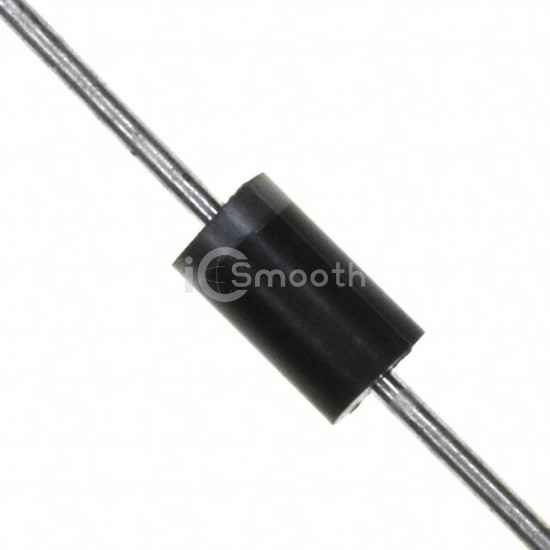

VS-1N5820TR

Vishay General Semiconductor - Diodes Division

DIODE SCHOTTKY 20V 3A DO201AD

VS-1N5820TR is a Diodes - Rectifiers - Single manufactured by Vishay General Semiconductor - Diodes Division. DIODE SCHOTTKY 20V 3A DO201AD. Key specifications: mounting type Through Hole, package / case DO-201AD, Axial.

Datasheet Request a Quote

In Stock: 8,635

Specifications

13 parameters

Product Status	Obsolete
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	20 V
Current - Average Rectified (Io)	3A
Voltage - Forward (Vf) (Max) @ If	475 mV @ 3 A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)	-

Current - Reverse Leakage @ Vr	2 mA @ 20 V
Capacitance @ Vr, F	350pF @ 5V, 1MHz
Mounting Type	Through Hole
Package / Case	DO-201AD, Axial
Supplier Device Package	DO-201AD (C-16)
Operating Temperature - Junction	-65°C ~ 150°C
