Name: VS-1N3209
Brand: Vishay General Semiconductor - Diodes Division
SKU: VS-1N3209
Availability: InStock

REF: VS-1N3209 Vishay General Semiconductor - Diodes Division

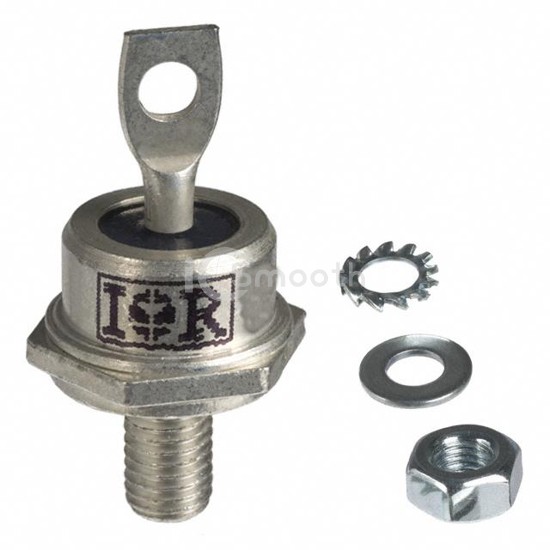

VS-1N3209

Vishay General Semiconductor - Diodes Division

DIODE GEN PURP 100V 15A DO203AB

VS-1N3209 is a Diodes - Rectifiers - Single manufactured by Vishay General Semiconductor - Diodes Division. DIODE GEN PURP 100V 15A DO203AB. Key specifications: mounting type Chassis, Stud Mount, package / case DO-203AB, DO-5, Stud.

Datasheet Request a Quote

In Stock: 7,363

Specifications

13 parameters

Product Status	Active
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	100 V
Current - Average Rectified (Io)	15A
Voltage - Forward (Vf) (Max) @ If	1.5 V @ 15 A
Speed	Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr)	-

Current - Reverse Leakage @ Vr	10 mA @ 100 V
Capacitance @ Vr, F	-
Mounting Type	Chassis, Stud Mount
Package / Case	DO-203AB, DO-5, Stud
Supplier Device Package	DO-203AB (DO-5)
Operating Temperature - Junction	-65°C ~ 175°C
