VI30120CHM3/4W

In Stock: 4,003

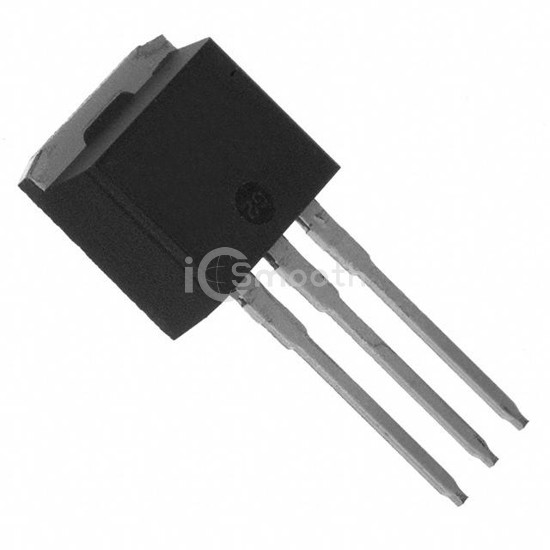

VI30120CHM3/4W - Vishay General Semiconductor - Diodes Division - Diodes - Rectifiers - Arrays
REF: VI30120CHM3/4W Vishay General Semiconductor - Diodes Division
VI30120CHM3/4W

Vishay General Semiconductor - Diodes Division

DIODE SCHOTTKY 30A 120V TO-262AA

VI30120CHM3/4W is a Diodes - Rectifiers - Arrays manufactured by Vishay General Semiconductor - Diodes Division. DIODE SCHOTTKY 30A 120V TO-262AA. Key specifications: mounting type Through Hole, package / case TO-262-3 Long Leads, I²Pak, TO-262AA.

Datasheet Request a Quote

In Stock: 4,003

Specifications

13 parameters
Product StatusObsolete
Diode Configuration1 Pair Common Cathode
Diode TypeSchottky
Voltage - DC Reverse (Vr) (Max)120 V
Current - Average Rectified (Io) (per Diode)15A
Voltage - Forward (Vf) (Max) @ If970 mV @ 15 A
SpeedFast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)-
Current - Reverse Leakage @ Vr800 µA @ 120 V
Operating Temperature - Junction-40°C ~ 150°C
Mounting TypeThrough Hole
Package / CaseTO-262-3 Long Leads, I²Pak, TO-262AA
Supplier Device PackageTO-262AA
