VESD15A1-HD1-G4-08

In Stock: 6,987

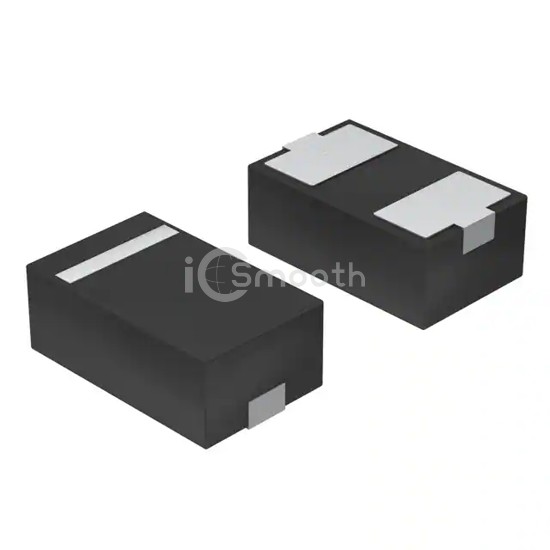

VESD15A1-HD1-G4-08 - Vishay General Semiconductor - Diodes Division - TVS - Diodes
REF: VESD15A1-HD1-G4-08 Vishay General Semiconductor - Diodes Division
VESD15A1-HD1-G4-08

Vishay General Semiconductor - Diodes Division

TVS DIODE 15VWM 27VC LLP1006-2L

VESD15A1-HD1-G4-08 is a TVS - Diodes manufactured by Vishay General Semiconductor - Diodes Division. TVS DIODE 15VWM 27VC LLP1006-2L. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), package / case SOD-882.

Datasheet Request a Quote

In Stock: 6,987

Tiered Pricing USD
1+ $0.3000 —
10+ $0.1840 -39%
100+ $0.1151 -62% BEST

Specifications

16 parameters
Product StatusActive
TypeZener
Unidirectional Channels1
Bidirectional Channels-
Voltage - Reverse Standoff (Typ)15V (Max)
Voltage - Breakdown (Min)15.5V
Voltage - Clamping (Max) @ Ipp27V
Current - Peak Pulse (10/1000µs)6A (8/20µs)
Power - Peak Pulse150W
Power Line ProtectionNo
ApplicationsGeneral Purpose
Capacitance @ Frequency45pF @ 1MHz
Operating Temperature-40°C ~ 125°C (TJ)
Mounting TypeSurface Mount
Package / CaseSOD-882
Supplier Device PackageLLP1006-2L
