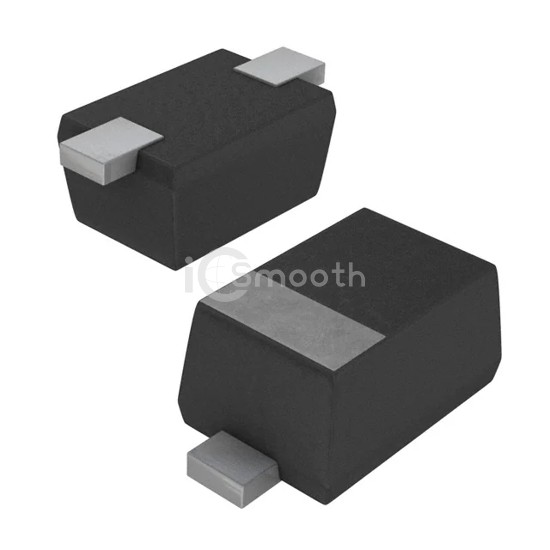

Name: VESD12C1-HD1-G3-08
Brand: Vishay General Semiconductor - Diodes Division
SKU: VESD12C1-HD1-G3-08
Price: 0.26 USD
Availability: InStock

REF: VESD12C1-HD1-G3-08 Vishay General Semiconductor - Diodes Division

VESD12C1-HD1-G3-08

Vishay General Semiconductor - Diodes Division

12V;IR=0.1UA;IP=4.4A;P=W;CD=40PF

VESD12C1-HD1-G3-08 is a TVS - Diodes manufactured by Vishay General Semiconductor - Diodes Division. 12V;IR=0.1UA;IP=4.4A;P=W;CD=40PF. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 0402 (1006 Metric).

Datasheet Request a Quote

In Stock: 11,895

Tiered Pricing USD

1+ $0.2600 —

10+ $0.1780 -32%

100+ $0.0710 -73%

500+ $0.0690 -73%

1,000+ $0.0670 -74%

2,000+ $0.0665 -74%

5,000+ $0.0660 -75% BEST

Specifications

16 parameters

Product Status	Active
Type	Zener
Unidirectional Channels	1
Bidirectional Channels	-
Voltage - Reverse Standoff (Typ)	12V (Max)
Voltage - Breakdown (Min)	14.3V
Voltage - Clamping (Max) @ Ipp	22.7V
Current - Peak Pulse (10/1000µs)	4.4A (8/20µs)

Power - Peak Pulse	100W
Power Line Protection	No
Applications	General Purpose
Capacitance @ Frequency	33pF @ 1MHz
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	0402 (1006 Metric)
Supplier Device Package	DFN1006-2A
