Name: VESD12C1-02VHG3-08
Brand: Vishay General Semiconductor - Diodes Division
SKU: VESD12C1-02VHG3-08
Price: 0.23 USD
Availability: InStock

REF: VESD12C1-02VHG3-08 Vishay General Semiconductor - Diodes Division

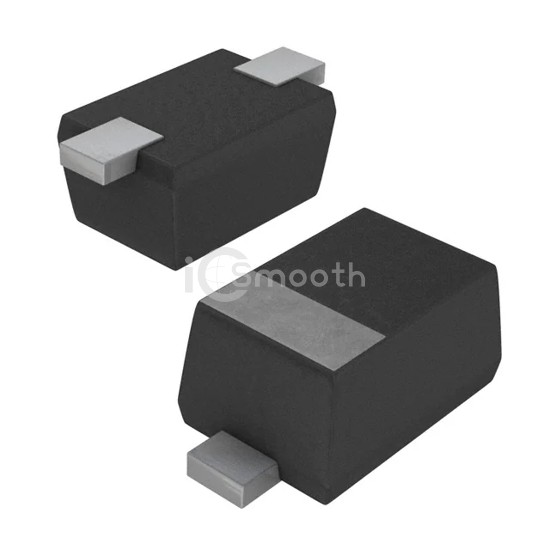

VESD12C1-02VHG3-08

Vishay General Semiconductor - Diodes Division

TVS DIODE 12VWM 22.7VC SOD523

VESD12C1-02VHG3-08 is a TVS - Diodes manufactured by Vishay General Semiconductor - Diodes Division. TVS DIODE 12VWM 22.7VC SOD523. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case SC-79, SOD-523.

Datasheet Request a Quote

In Stock: 1,975

Tiered Pricing USD

1+ $0.2300 —

10+ $0.1570 -32%

100+ $0.0670 -71%

500+ $0.0660 -71%

1,000+ $0.0640 -72% BEST

Specifications

16 parameters

Product Status	Active
Type	Zener
Unidirectional Channels	1
Bidirectional Channels	-
Voltage - Reverse Standoff (Typ)	12V (Max)
Voltage - Breakdown (Min)	13.9V
Voltage - Clamping (Max) @ Ipp	22.7V
Current - Peak Pulse (10/1000µs)	4.4A (8/20µs)

Power - Peak Pulse	100W
Power Line Protection	No
Applications	Automotive
Capacitance @ Frequency	33pF @ 1MHz
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	SC-79, SOD-523
Supplier Device Package	SOD-523
