VESD12C1-02V-G3-08

In Stock: 5,221

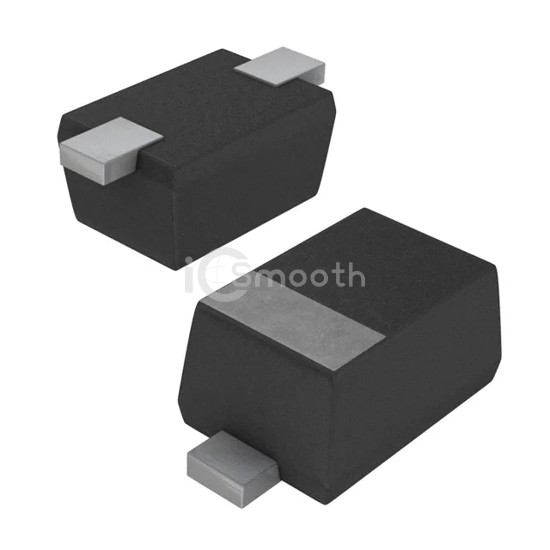

VESD12C1-02V-G3-08 - Vishay General Semiconductor - Diodes Division - TVS - Diodes
REF: VESD12C1-02V-G3-08 Vishay General Semiconductor - Diodes Division
VESD12C1-02V-G3-08

Vishay General Semiconductor - Diodes Division

TVS DIODE 12VWM 22.7VC SOD523

VESD12C1-02V-G3-08 is a TVS - Diodes manufactured by Vishay General Semiconductor - Diodes Division. TVS DIODE 12VWM 22.7VC SOD523. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case SC-79, SOD-523.

Datasheet Request a Quote

In Stock: 5,221

Tiered Pricing USD
1+ $0.3600 —
10+ $0.2580 -28%
100+ $0.1254 -65%
500+ $0.1049 -71%
1,000+ $0.0736 -80%
2,000+ $0.0655 -82% BEST

Specifications

16 parameters
Product StatusActive
TypeZener
Unidirectional Channels1
Bidirectional Channels-
Voltage - Reverse Standoff (Typ)12V (Max)
Voltage - Breakdown (Min)13.9V
Voltage - Clamping (Max) @ Ipp22.7V
Current - Peak Pulse (10/1000µs)4.4A (8/20µs)
Power - Peak Pulse100W
Power Line ProtectionNo
ApplicationsAutomotive
Capacitance @ Frequency33pF @ 1MHz
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / CaseSC-79, SOD-523
Supplier Device PackageSOD-523
