VESD12A2-03G-G3-08

In Stock: 12,975

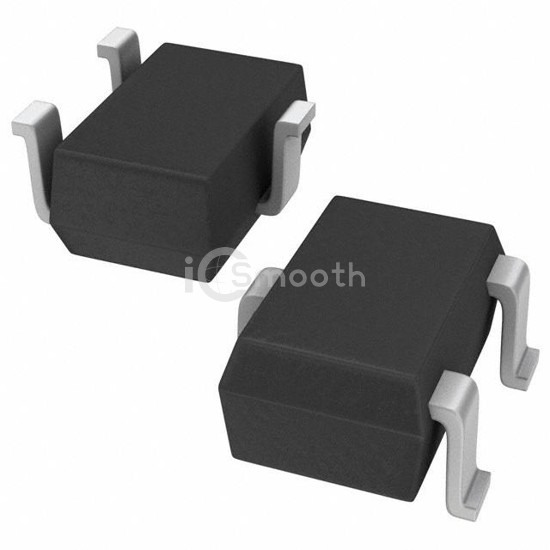

VESD12A2-03G-G3-08 - Vishay General Semiconductor - Diodes Division - TVS - Diodes
REF: VESD12A2-03G-G3-08 Vishay General Semiconductor - Diodes Division
VESD12A2-03G-G3-08

Vishay General Semiconductor - Diodes Division

TVS DIODE 12VWM 22.7VC SOT323

VESD12A2-03G-G3-08 is a TVS - Diodes manufactured by Vishay General Semiconductor - Diodes Division. TVS DIODE 12VWM 22.7VC SOT323. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case SC-70, SOT-323.

Datasheet Request a Quote

In Stock: 12,975

Tiered Pricing USD
1+ $0.2300 —
10+ $0.1570 -32%
100+ $0.0750 -67%
500+ $0.0740 -68%
1,000+ $0.0730 -68% BEST

Specifications

16 parameters
Product StatusActive
TypeZener
Unidirectional Channels2
Bidirectional Channels-
Voltage - Reverse Standoff (Typ)12V (Max)
Voltage - Breakdown (Min)13.9V
Voltage - Clamping (Max) @ Ipp22.7V
Current - Peak Pulse (10/1000µs)4.4A (8/20µs)
Power - Peak Pulse100W
Power Line ProtectionNo
ApplicationsAutomotive
Capacitance @ Frequency33pF @ 1MHz
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / CaseSC-70, SOT-323
Supplier Device PackageSOT-323
