Name: VESD09A4A-HS4-GS08
Brand: Vishay General Semiconductor - Diodes Division
SKU: VESD09A4A-HS4-GS08
Availability: InStock

REF: VESD09A4A-HS4-GS08 Vishay General Semiconductor - Diodes Division

VESD09A4A-HS4-GS08

Vishay General Semiconductor - Diodes Division

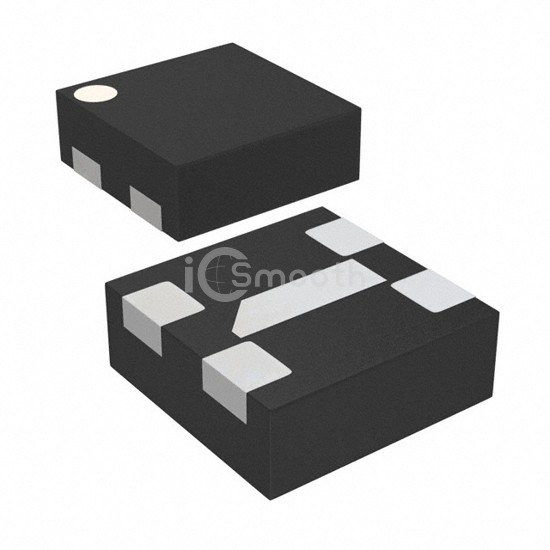

TVS DIODE 9VWM 23VC LLP1010-5L

VESD09A4A-HS4-GS08 is a TVS - Diodes manufactured by Vishay General Semiconductor - Diodes Division. TVS DIODE 9VWM 23VC LLP1010-5L. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), package / case 5-XFDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 5,535

Specifications

16 parameters

Product Status	Obsolete
Type	Zener
Unidirectional Channels	4
Bidirectional Channels	-
Voltage - Reverse Standoff (Typ)	9V (Max)
Voltage - Breakdown (Min)	11.2V
Voltage - Clamping (Max) @ Ipp	23V
Current - Peak Pulse (10/1000µs)	1.5A (8/20µs)

Power - Peak Pulse	30W
Power Line Protection	No
Applications	General Purpose
Capacitance @ Frequency	6.2pF @ 1MHz
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	5-XFDFN Exposed Pad
Supplier Device Package	LLP1010-5L
