Name: VESD05B1-02VHG3-08
Brand: Vishay General Semiconductor - Diodes Division
SKU: VESD05B1-02VHG3-08
Price: 0.23 USD
Availability: InStock

REF: VESD05B1-02VHG3-08 Vishay General Semiconductor - Diodes Division

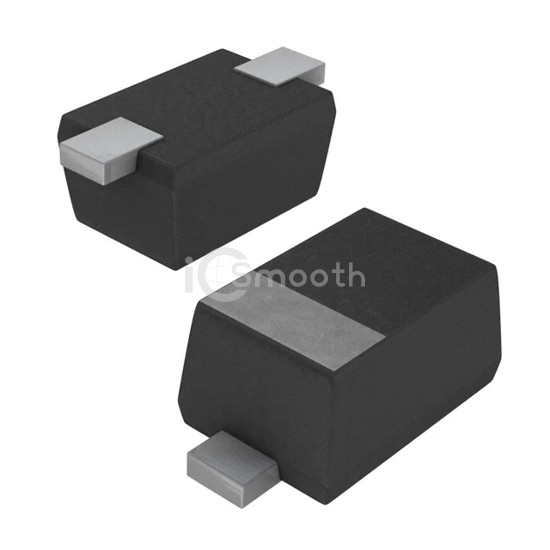

VESD05B1-02VHG3-08

Vishay General Semiconductor - Diodes Division

TVS DIODE 5VWM 9.5VC SOD523

VESD05B1-02VHG3-08 is a TVS - Diodes manufactured by Vishay General Semiconductor - Diodes Division. TVS DIODE 5VWM 9.5VC SOD523. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case SC-79, SOD-523.

Datasheet Request a Quote

In Stock: 4,982

Tiered Pricing USD

1+ $0.2300 —

10+ $0.1570 -32%

100+ $0.0680 -70%

500+ $0.0670 -71%

1,000+ $0.0660 -71% BEST

Specifications

16 parameters

Product Status	Active
Type	Zener
Unidirectional Channels	1
Bidirectional Channels	-
Voltage - Reverse Standoff (Typ)	5V (Max)
Voltage - Breakdown (Min)	6V
Voltage - Clamping (Max) @ Ipp	9.5V
Current - Peak Pulse (10/1000µs)	3.5A (8/20µs)

Power - Peak Pulse	40W
Power Line Protection	No
Applications	Automotive
Capacitance @ Frequency	23pF @ 1MHz
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	SC-79, SOD-523
Supplier Device Package	SOD-523
