VESD05B1-02V-G3-08

In Stock: 9,709

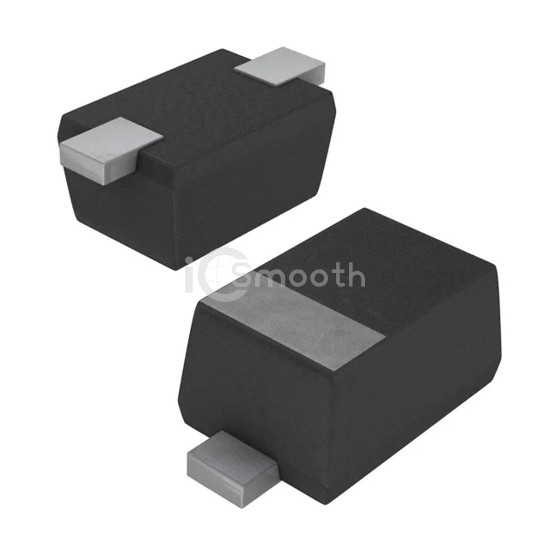

VESD05B1-02V-G3-08 - Vishay General Semiconductor - Diodes Division - TVS - Diodes
REF: VESD05B1-02V-G3-08 Vishay General Semiconductor - Diodes Division
VESD05B1-02V-G3-08

Vishay General Semiconductor - Diodes Division

TVS DIODE 5VWM 9.5VC SOD523

VESD05B1-02V-G3-08 is a TVS - Diodes manufactured by Vishay General Semiconductor - Diodes Division. TVS DIODE 5VWM 9.5VC SOD523. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case SC-79, SOD-523.

Datasheet Request a Quote

In Stock: 9,709

Tiered Pricing USD
1+ $0.2100 —
10+ $0.1390 -34%
100+ $0.0620 -70%
500+ $0.0600 -71%
1,000+ $0.0580 -72% BEST

Specifications

16 parameters
Product StatusActive
TypeZener
Unidirectional Channels1
Bidirectional Channels-
Voltage - Reverse Standoff (Typ)5V (Max)
Voltage - Breakdown (Min)6V
Voltage - Clamping (Max) @ Ipp9.5V
Current - Peak Pulse (10/1000µs)3.5A (8/20µs)
Power - Peak Pulse40W
Power Line ProtectionNo
ApplicationsAutomotive
Capacitance @ Frequency23pF @ 1MHz
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / CaseSC-79, SOD-523
Supplier Device PackageSOD-523
