Name: VESD05A5A-HSF-GS08
Brand: Vishay General Semiconductor - Diodes Division
SKU: VESD05A5A-HSF-GS08
Price: 0.49 USD
Availability: InStock

REF: VESD05A5A-HSF-GS08 Vishay General Semiconductor - Diodes Division

VESD05A5A-HSF-GS08

Vishay General Semiconductor - Diodes Division

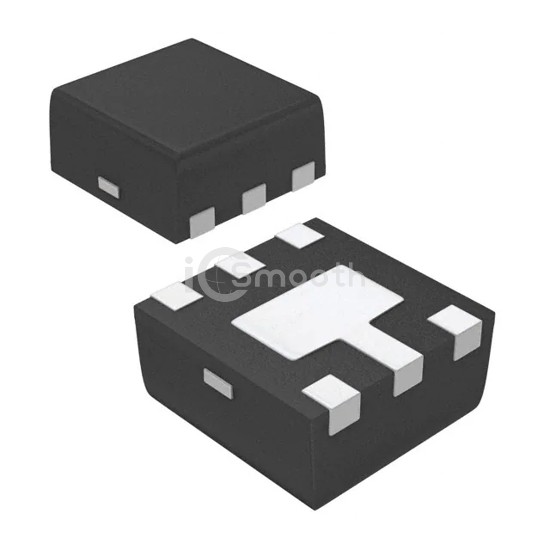

TVS DIODE 5VWM 13VC LLP75-6L

VESD05A5A-HSF-GS08 is a TVS - Diodes manufactured by Vishay General Semiconductor - Diodes Division. TVS DIODE 5VWM 13VC LLP75-6L. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), package / case 6-UFDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 8,291

Tiered Pricing USD

1+ $0.4900 —

10+ $0.3870 -21%

100+ $0.2630 -46%

500+ $0.2070 -58%

1,000+ $0.1830 -63% BEST

Specifications

16 parameters

Product Status	Active
Type	Zener
Unidirectional Channels	5
Bidirectional Channels	-
Voltage - Reverse Standoff (Typ)	5V (Max)
Voltage - Breakdown (Min)	6V
Voltage - Clamping (Max) @ Ipp	13V
Current - Peak Pulse (10/1000µs)	2.5A (8/20µs)

Power - Peak Pulse	33W
Power Line Protection	No
Applications	General Purpose
Capacitance @ Frequency	13pF @ 1MHz
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	6-UFDFN Exposed Pad
Supplier Device Package	LLP75-6L
