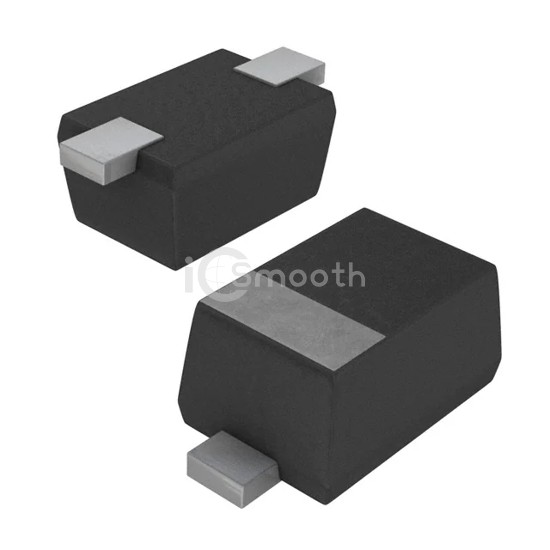

Name: VESD05A1-02VHG3-08
Brand: Vishay General Semiconductor - Diodes Division
SKU: VESD05A1-02VHG3-08
Price: 0.24 USD
Availability: InStock

REF: VESD05A1-02VHG3-08 Vishay General Semiconductor - Diodes Division

VESD05A1-02VHG3-08

Vishay General Semiconductor - Diodes Division

TVS DIODE 5VWM 12VC SOD523

VESD05A1-02VHG3-08 is a TVS - Diodes manufactured by Vishay General Semiconductor - Diodes Division. TVS DIODE 5VWM 12VC SOD523. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case SC-79, SOD-523.

Datasheet Request a Quote

In Stock: 2,599

Tiered Pricing USD

1+ $0.2400 —

10+ $0.1390 -42%

100+ $0.0680 -72%

500+ $0.0630 -74%

1,000+ $0.0540 -78%

2,000+ $0.0536 -78% BEST

Specifications

16 parameters

Product Status	Active
Type	Zener
Unidirectional Channels	1
Bidirectional Channels	-
Voltage - Reverse Standoff (Typ)	5V (Max)
Voltage - Breakdown (Min)	6V
Voltage - Clamping (Max) @ Ipp	12V
Current - Peak Pulse (10/1000µs)	16A (8/20µs)

Power - Peak Pulse	192W
Power Line Protection	No
Applications	Automotive
Capacitance @ Frequency	130pF @ 1MHz
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	SC-79, SOD-523
Supplier Device Package	SOD-523
