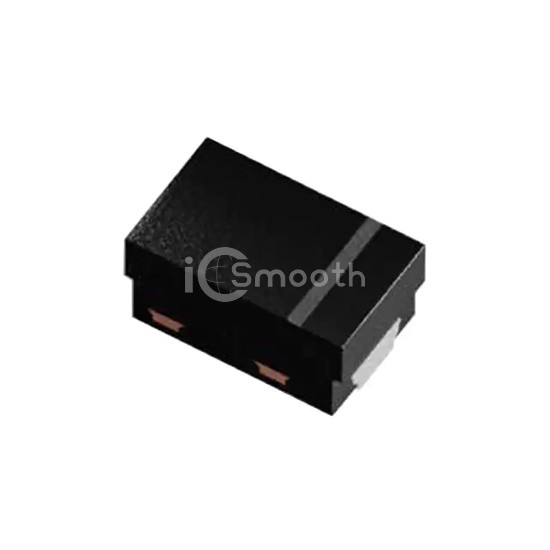

Name: VESD03C1-HD1-G3-08
Brand: Vishay General Semiconductor - Diodes Division
SKU: VESD03C1-HD1-G3-08
Price: 0.37 USD
Availability: InStock

REF: VESD03C1-HD1-G3-08 Vishay General Semiconductor - Diodes Division

VESD03C1-HD1-G3-08

Vishay General Semiconductor - Diodes Division

3V;IR=20UA;IP=11.6A;P=W;CD=135PF

VESD03C1-HD1-G3-08 is a TVS - Diodes manufactured by Vishay General Semiconductor - Diodes Division. 3V;IR=20UA;IP=11.6A;P=W;CD=135PF. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 0402 (1006 Metric).

Datasheet Request a Quote

In Stock: 11,900

Tiered Pricing USD

1+ $0.3700 —

10+ $0.2270 -39%

100+ $0.1425 -61%

500+ $0.1058 -71%

1,000+ $0.0790 -79%

2,000+ $0.0765 -79%

5,000+ $0.0731 -80% BEST

Specifications

16 parameters

Product Status	Active
Type	Zener
Unidirectional Channels	1
Bidirectional Channels	-
Voltage - Reverse Standoff (Typ)	3V (Max)
Voltage - Breakdown (Min)	4.45V
Voltage - Clamping (Max) @ Ipp	8.7V
Current - Peak Pulse (10/1000µs)	11.6A (8/20µs)

Power - Peak Pulse	100W
Power Line Protection	No
Applications	General Purpose
Capacitance @ Frequency	112pF @ 1MHz
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	0402 (1006 Metric)
Supplier Device Package	DFN1006-2A
