Name: VESD03A1C-02Z-GS08
Brand: Vishay General Semiconductor - Diodes Division
SKU: VESD03A1C-02Z-GS08
Availability: InStock

REF: VESD03A1C-02Z-GS08 Vishay General Semiconductor - Diodes Division

VESD03A1C-02Z-GS08

Vishay General Semiconductor - Diodes Division

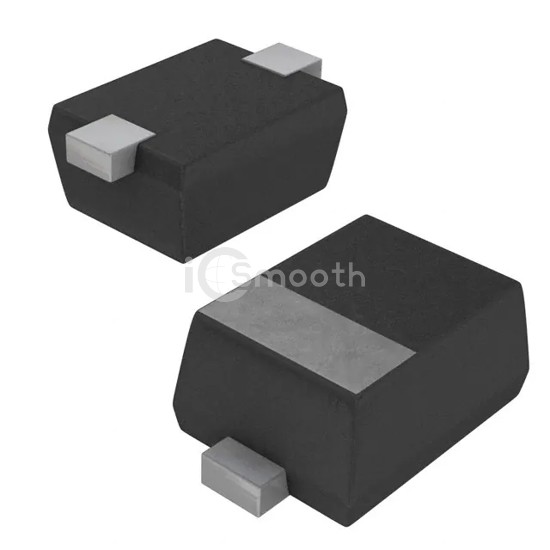

TVS DIODE 3.3VWM 10VC SOD923

VESD03A1C-02Z-GS08 is a TVS - Diodes manufactured by Vishay General Semiconductor - Diodes Division. TVS DIODE 3.3VWM 10VC SOD923. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), package / case SOD-923.

Datasheet Request a Quote

In Stock: 1,652

Specifications

16 parameters

Product Status	Obsolete
Type	Zener
Unidirectional Channels	1
Bidirectional Channels	-
Voltage - Reverse Standoff (Typ)	3.3V (Max)
Voltage - Breakdown (Min)	5V
Voltage - Clamping (Max) @ Ipp	10V
Current - Peak Pulse (10/1000µs)	9.5A (8/20µs)

Power - Peak Pulse	95W
Power Line Protection	No
Applications	General Purpose
Capacitance @ Frequency	78pF @ 1MHz
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	SOD-923
Supplier Device Package	SOD-923
