VESD03-02V-G-08

In Stock: 9,875

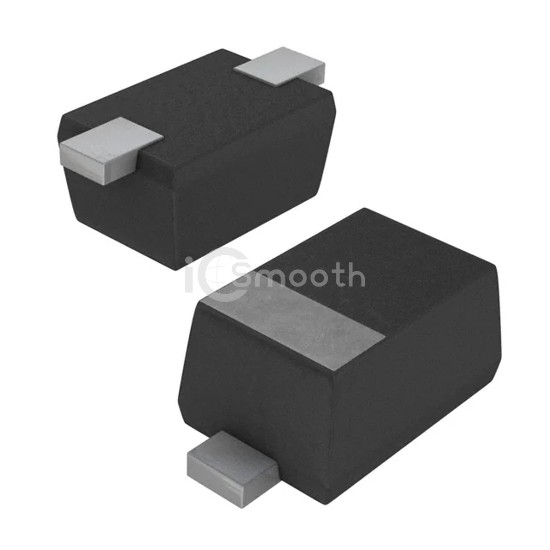

VESD03-02V-G-08 - Vishay General Semiconductor - Diodes Division - TVS - Diodes
REF: VESD03-02V-G-08 Vishay General Semiconductor - Diodes Division
VESD03-02V-G-08

Vishay General Semiconductor - Diodes Division

TVS DIODE 3VWM 12VC SOD523

VESD03-02V-G-08 is a TVS - Diodes manufactured by Vishay General Semiconductor - Diodes Division. TVS DIODE 3VWM 12VC SOD523. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), package / case SC-79, SOD-523.

Datasheet Request a Quote

In Stock: 9,875

Specifications

16 parameters
Product StatusObsolete
TypeZener
Unidirectional Channels1
Bidirectional Channels-
Voltage - Reverse Standoff (Typ)3V (Max)
Voltage - Breakdown (Min)4V
Voltage - Clamping (Max) @ Ipp12V (Typ)
Current - Peak Pulse (10/1000µs)9A (8/20µs)
Power - Peak Pulse108W
Power Line ProtectionNo
ApplicationsGeneral Purpose
Capacitance @ Frequency110pF @ 1MHz
Operating Temperature-40°C ~ 125°C (TJ)
Mounting TypeSurface Mount
Package / CaseSC-79, SOD-523
Supplier Device PackageSOD-523
