VESD01A2-03G-G3-08

In Stock: 1,978

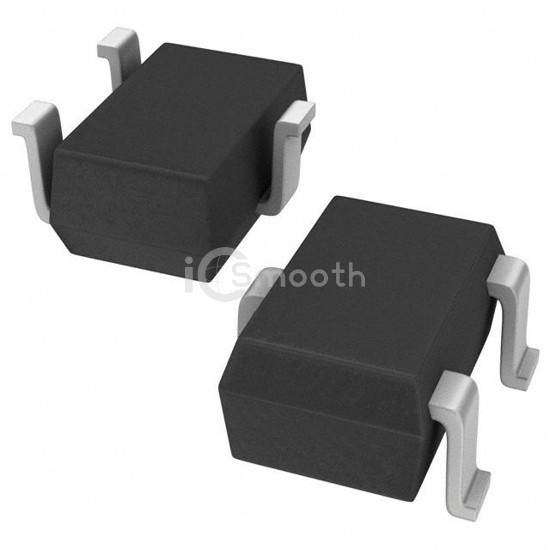

VESD01A2-03G-G3-08 - Vishay General Semiconductor - Diodes Division - TVS - Diodes
REF: VESD01A2-03G-G3-08 Vishay General Semiconductor - Diodes Division
VESD01A2-03G-G3-08

Vishay General Semiconductor - Diodes Division

TVS DIODE 1VWM 6.9VC SOT323

VESD01A2-03G-G3-08 is a TVS - Diodes manufactured by Vishay General Semiconductor - Diodes Division. TVS DIODE 1VWM 6.9VC SOT323. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case SC-70, SOT-323.

Datasheet Request a Quote

In Stock: 1,978

Tiered Pricing USD
1+ $0.3300 —
10+ $0.2030 -38%
100+ $0.1268 -62%
500+ $0.0938 -72%
1,000+ $0.0832 -75% BEST

Specifications

16 parameters
Product StatusActive
TypeZener
Unidirectional Channels2
Bidirectional Channels-
Voltage - Reverse Standoff (Typ)1V (Max)
Voltage - Breakdown (Min)2.5V
Voltage - Clamping (Max) @ Ipp6.9V
Current - Peak Pulse (10/1000µs)14.6A (8/20µs)
Power - Peak Pulse100W
Power Line ProtectionNo
ApplicationsAutomotive
Capacitance @ Frequency192pF @ 1MHz
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / CaseSC-70, SOT-323
Supplier Device PackageSOT-323
