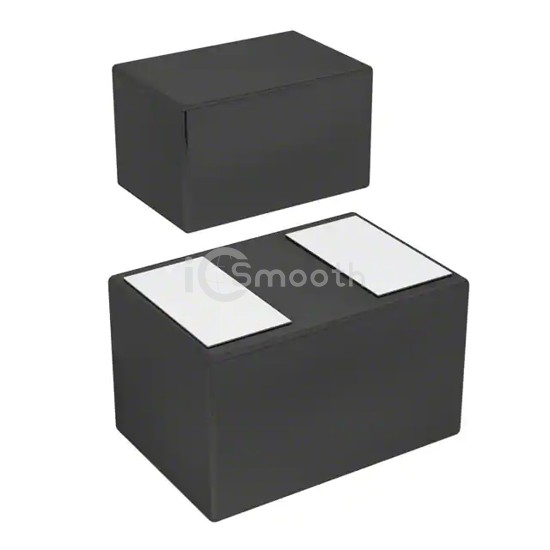

Name: VCUT10A1-SD0HG4-08
Brand: Vishay General Semiconductor - Diodes Division
SKU: VCUT10A1-SD0HG4-08
Availability: InStock

REF: VCUT10A1-SD0HG4-08 Vishay General Semiconductor - Diodes Division

VCUT10A1-SD0HG4-08

Vishay General Semiconductor - Diodes Division

TVS DIODE 10VWM 18VC CLP0603

VCUT10A1-SD0HG4-08 is a TVS - Diodes manufactured by Vishay General Semiconductor - Diodes Division. TVS DIODE 10VWM 18VC CLP0603. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 0201 (0603 Metric).

Datasheet Request a Quote

In Stock: 3,753

Specifications

16 parameters

Product Status	Obsolete
Type	Zener
Unidirectional Channels	-
Bidirectional Channels	1
Voltage - Reverse Standoff (Typ)	10V (Max)
Voltage - Breakdown (Min)	11V
Voltage - Clamping (Max) @ Ipp	18V
Current - Peak Pulse (10/1000µs)	4A (8/20µs)

Power - Peak Pulse	72W
Power Line Protection	No
Applications	Automotive
Capacitance @ Frequency	7.7pF @ 1MHz
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	0201 (0603 Metric)
Supplier Device Package	CLP0603
