VCUT07B1-HD1-G4-08

In Stock: 4,564

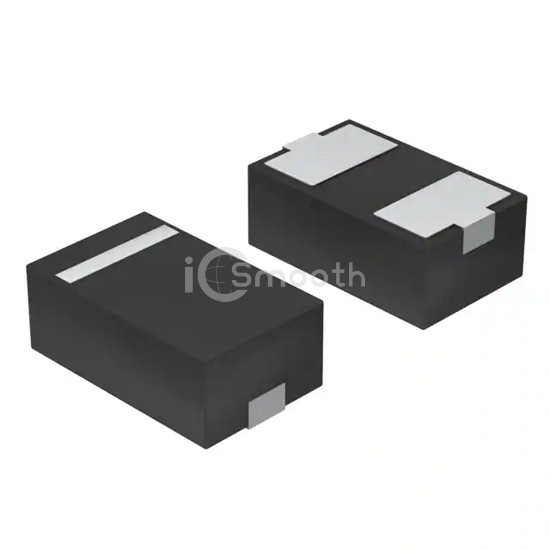

VCUT07B1-HD1-G4-08 - Vishay General Semiconductor - Diodes Division - TVS - Diodes
REF: VCUT07B1-HD1-G4-08 Vishay General Semiconductor - Diodes Division
VCUT07B1-HD1-G4-08

Vishay General Semiconductor - Diodes Division

TVS DIODE 7VWM 15VC LLP1006-2L

VCUT07B1-HD1-G4-08 is a TVS - Diodes manufactured by Vishay General Semiconductor - Diodes Division. TVS DIODE 7VWM 15VC LLP1006-2L. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), package / case SOD-882.

Datasheet Request a Quote

In Stock: 4,564

Tiered Pricing USD
1+ $0.1900 —
10+ $0.1180 -38%
100+ $0.0470 -75%
500+ $0.0430 -77%
1,000+ $0.0421 -78% BEST

Specifications

16 parameters
Product StatusActive
TypeZener
Unidirectional Channels-
Bidirectional Channels1
Voltage - Reverse Standoff (Typ)7V (Max)
Voltage - Breakdown (Min)7.3V
Voltage - Clamping (Max) @ Ipp15V
Current - Peak Pulse (10/1000µs)4A (8/20µs)
Power - Peak Pulse60W
Power Line ProtectionNo
ApplicationsGeneral Purpose
Capacitance @ Frequency14pF @ 1MHz
Operating Temperature-40°C ~ 125°C (TJ)
Mounting TypeSurface Mount
Package / CaseSOD-882
Supplier Device PackageLLP1006-2L
