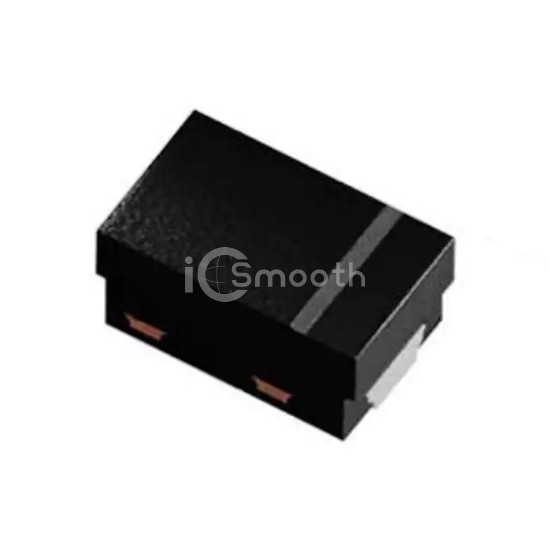

Name: VCUT0714BHD1-G3-08
Brand: Vishay General Semiconductor - Diodes Division
SKU: VCUT0714BHD1-G3-08
Price: 0.18 USD
Availability: InStock

REF: VCUT0714BHD1-G3-08 Vishay General Semiconductor - Diodes Division

VCUT0714BHD1-G3-08

Vishay General Semiconductor - Diodes Division

TVS DIODE 7VWM 14VWM 2DFN

VCUT0714BHD1-G3-08 is a TVS - Diodes manufactured by Vishay General Semiconductor - Diodes Division. TVS DIODE 7VWM 14VWM 2DFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 0402 (1006 Metric).

Datasheet Request a Quote

In Stock: 5,315

Tiered Pricing USD

1+ $0.1800 —

10+ $0.0990 -45%

100+ $0.0490 -73%

500+ $0.0480 -73%

1,000+ $0.0460 -74%

2,000+ $0.0455 -75%

5,000+ $0.0450 -75% BEST

Specifications

16 parameters

Product Status	Active
Type	Zener
Unidirectional Channels	-
Bidirectional Channels	1
Voltage - Reverse Standoff (Typ)	7V, 14V
Voltage - Breakdown (Min)	7.3V, 14.5V
Voltage - Clamping (Max) @ Ipp	15V, 30V
Current - Peak Pulse (10/1000µs)	3.6A (8/20µs), 2A (8/20µs)

Power - Peak Pulse	50W, 61W
Power Line Protection	No
Applications	Automotive
Capacitance @ Frequency	8pF @ 1MHz
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	0402 (1006 Metric)
Supplier Device Package	DFN1006-2A
