Name: VCUT0714A-HD1-GS08
Brand: Vishay General Semiconductor - Diodes Division
SKU: VCUT0714A-HD1-GS08
Price: 0.26 USD
Availability: InStock

REF: VCUT0714A-HD1-GS08 Vishay General Semiconductor - Diodes Division

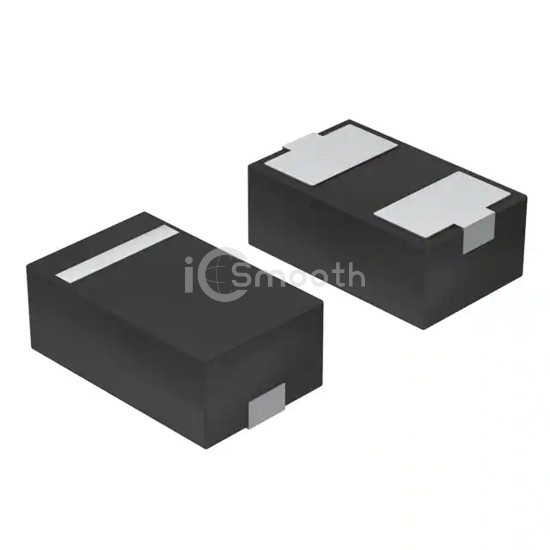

VCUT0714A-HD1-GS08

Vishay General Semiconductor - Diodes Division

TVS DIODE 7VWM 14VWM LLP1006-2L

VCUT0714A-HD1-GS08 is a TVS - Diodes manufactured by Vishay General Semiconductor - Diodes Division. TVS DIODE 7VWM 14VWM LLP1006-2L. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), package / case SOD-882.

Datasheet Request a Quote

In Stock: 6,325

Tiered Pricing USD

1+ $0.2600 —

10+ $0.1780 -32%

100+ $0.0790 -70%

500+ $0.0770 -70%

1,000+ $0.0750 -71% BEST

Specifications

16 parameters

Product Status	Active
Type	Zener
Unidirectional Channels	-
Bidirectional Channels	1
Voltage - Reverse Standoff (Typ)	7V, 14V
Voltage - Breakdown (Min)	7.3V, 14.5V
Voltage - Clamping (Max) @ Ipp	17V, 30V
Current - Peak Pulse (10/1000µs)	5A, 2A (8/20µs)

Power - Peak Pulse	54W, 63W
Power Line Protection	No
Applications	RS-485
Capacitance @ Frequency	8pF @ 1MHz
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	SOD-882
Supplier Device Package	LLP1006-2L
