Name: VCUT05F1-HD0-G4-08
Brand: Vishay General Semiconductor - Diodes Division
SKU: VCUT05F1-HD0-G4-08
Price: 0.37 USD
Availability: InStock

REF: VCUT05F1-HD0-G4-08 Vishay General Semiconductor - Diodes Division

VCUT05F1-HD0-G4-08

Vishay General Semiconductor - Diodes Division

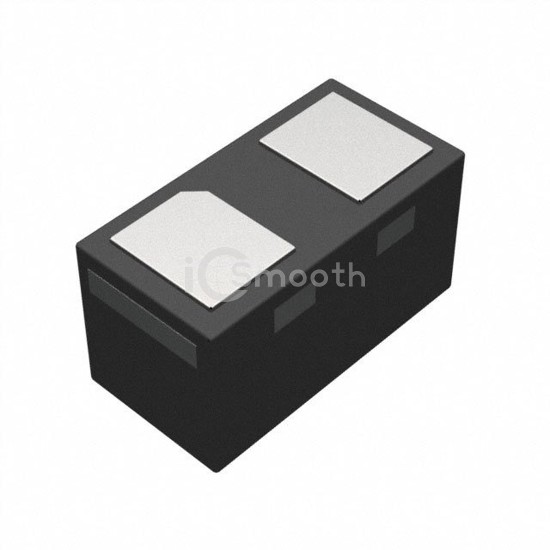

TVS DIODE 5.5VWM 14VC LLP0603-2L

VCUT05F1-HD0-G4-08 is a TVS - Diodes manufactured by Vishay General Semiconductor - Diodes Division. TVS DIODE 5.5VWM 14VC LLP0603-2L. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), package / case 0201 (0603 Metric).

Request a Quote

In Stock: 5,835

Specifications

16 parameters

Product Status	Obsolete
Type	Zener
Unidirectional Channels	-
Bidirectional Channels	1
Voltage - Reverse Standoff (Typ)	5.5V (Max)
Voltage - Breakdown (Min)	5.5V
Voltage - Clamping (Max) @ Ipp	14V
Current - Peak Pulse (10/1000µs)	4A (8/20µs)

Power - Peak Pulse	60W
Power Line Protection	No
Applications	General Purpose
Capacitance @ Frequency	14pF @ 1MHz
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	0201 (0603 Metric)
Supplier Device Package	LLP0603-2L
