VCUT05B1-DD1-G-08

In Stock: 94,437

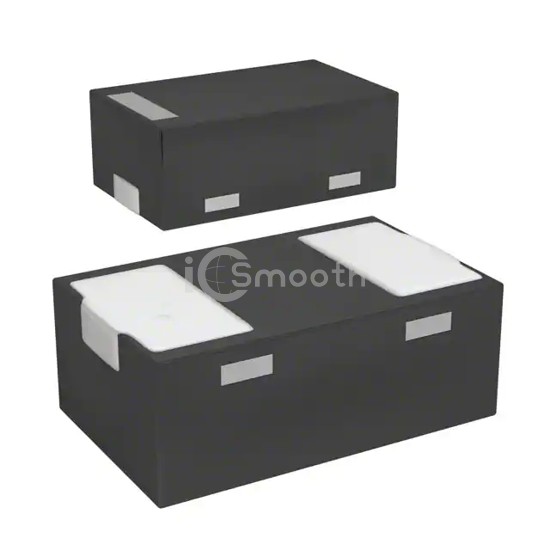

VCUT05B1-DD1-G-08 - Vishay General Semiconductor - Diodes Division - TVS - Diodes
REF: VCUT05B1-DD1-G-08 Vishay General Semiconductor - Diodes Division
VCUT05B1-DD1-G-08

Vishay General Semiconductor - Diodes Division

TVS DIODE 5.5V 12.5V LLP1006-2M

VCUT05B1-DD1-G-08 is a TVS - Diodes manufactured by Vishay General Semiconductor - Diodes Division. TVS DIODE 5.5V 12.5V LLP1006-2M. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 145°C (TJ), package / case SOD-882.

Datasheet Request a Quote

In Stock: 94,437

Tiered Pricing USD
1+ $0.2100 —
10+ $0.1290 -39%
100+ $0.0840 -60%
500+ $0.0800 -62%
1,000+ $0.0690 -67% BEST

Specifications

16 parameters
Product StatusActive
TypeZener
Unidirectional Channels-
Bidirectional Channels1
Voltage - Reverse Standoff (Typ)5.5V (Max)
Voltage - Breakdown (Min)6V
Voltage - Clamping (Max) @ Ipp12.5V
Current - Peak Pulse (10/1000µs)3A (8/20µs)
Power - Peak Pulse38W
Power Line ProtectionNo
ApplicationsGeneral Purpose
Capacitance @ Frequency10pF @ 1MHz
Operating Temperature-55°C ~ 145°C (TJ)
Mounting TypeSurface Mount
Package / CaseSOD-882
Supplier Device PackageLLP1006-2M
