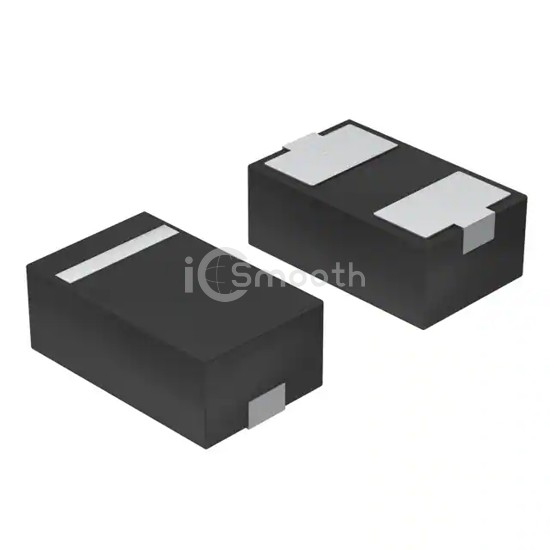

Name: VCUT0505B-HD1-GS08
Brand: Vishay General Semiconductor - Diodes Division
SKU: VCUT0505B-HD1-GS08
Price: 0.24 USD
Availability: InStock

REF: VCUT0505B-HD1-GS08 Vishay General Semiconductor - Diodes Division

VCUT0505B-HD1-GS08

Vishay General Semiconductor - Diodes Division

TVS DIODE 5.5VWM 16VC LLP1006-2L

VCUT0505B-HD1-GS08 is a TVS - Diodes manufactured by Vishay General Semiconductor - Diodes Division. TVS DIODE 5.5VWM 16VC LLP1006-2L. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), package / case SOD-882.

Datasheet Request a Quote

In Stock: 1,980

Tiered Pricing USD

1+ $0.2400 —

10+ $0.1600 -33%

100+ $0.0730 -70%

500+ $0.0690 -71%

1,000+ $0.0620 -74% BEST

Specifications

16 parameters

Product Status	Active
Type	Zener
Unidirectional Channels	-
Bidirectional Channels	1
Voltage - Reverse Standoff (Typ)	5.5V (Max)
Voltage - Breakdown (Min)	7V
Voltage - Clamping (Max) @ Ipp	16V
Current - Peak Pulse (10/1000µs)	3.5A (8/20µs)

Power - Peak Pulse	56W
Power Line Protection	No
Applications	General Purpose
Capacitance @ Frequency	18pF @ 1MHz
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	SOD-882
Supplier Device Package	LLP1006-2L
