VCUT03B1-DD1-G-08

In Stock: 3,700

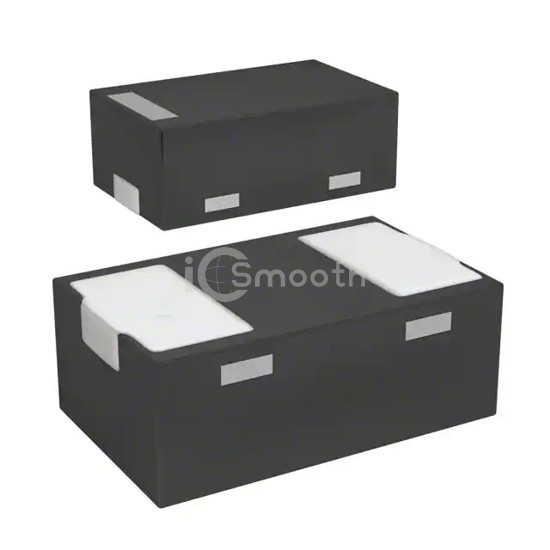

VCUT03B1-DD1-G-08 - Vishay General Semiconductor - Diodes Division - TVS - Diodes
REF: VCUT03B1-DD1-G-08 Vishay General Semiconductor - Diodes Division
VCUT03B1-DD1-G-08

Vishay General Semiconductor - Diodes Division

TVS DIODE 3.5V 11.5V LLP1006-2M

VCUT03B1-DD1-G-08 is a TVS - Diodes manufactured by Vishay General Semiconductor - Diodes Division. TVS DIODE 3.5V 11.5V LLP1006-2M. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), package / case SOD-882.

Datasheet Request a Quote

In Stock: 3,700

Tiered Pricing USD
1+ $0.2800 —
10+ $0.1900 -32%
100+ $0.0950 -66%
500+ $0.0830 -70%
1,000+ $0.0765 -73% BEST

Specifications

16 parameters
Product StatusActive
TypeZener
Unidirectional Channels-
Bidirectional Channels1
Voltage - Reverse Standoff (Typ)3.5V (Max)
Voltage - Breakdown (Min)5.8V
Voltage - Clamping (Max) @ Ipp11.5V
Current - Peak Pulse (10/1000µs)3.5A (8/20µs)
Power - Peak Pulse40W
Power Line ProtectionNo
ApplicationsGeneral Purpose
Capacitance @ Frequency12.5pF @ 1MHz
Operating Temperature-40°C ~ 125°C (TJ)
Mounting TypeSurface Mount
Package / CaseSOD-882
Supplier Device PackageLLP1006-2M
