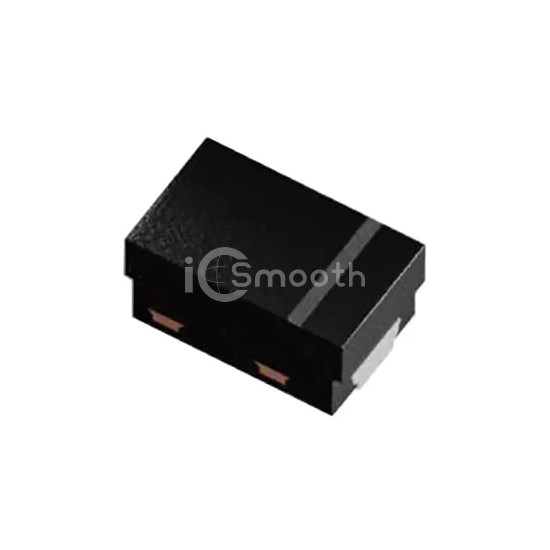

Name: VBUS05N1-HD1HG3-08
Brand: Vishay General Semiconductor - Diodes Division
SKU: VBUS05N1-HD1HG3-08
Price: 0.32 USD
Availability: InStock

REF: VBUS05N1-HD1HG3-08 Vishay General Semiconductor - Diodes Division

VBUS05N1-HD1HG3-08

Vishay General Semiconductor - Diodes Division

5.5V;IR=0.1UA;IP=4A;P=90W;CD=0.4

VBUS05N1-HD1HG3-08 is a TVS - Diodes manufactured by Vishay General Semiconductor - Diodes Division. 5.5V;IR=0.1UA;IP=4A;P=90W;CD=0.4. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 0402 (1006 Metric).

Request a Quote

In Stock: 1,900

Tiered Pricing USD

1+ $0.3200 —

10+ $0.2140 -33%

100+ $0.0860 -73%

500+ $0.0810 -75%

1,000+ $0.0750 -77%

2,000+ $0.0745 -77%

5,000+ $0.0731 -77% BEST

Specifications

16 parameters

Product Status	Active
Type	Zener
Unidirectional Channels	1
Bidirectional Channels	-
Voltage - Reverse Standoff (Typ)	5.5V (Max)
Voltage - Breakdown (Min)	7V
Voltage - Clamping (Max) @ Ipp	15V
Current - Peak Pulse (10/1000µs)	4A (8/20µs)

Power - Peak Pulse	60W
Power Line Protection	No
Applications	HDMI, USB
Capacitance @ Frequency	0.7pF @ 1MHz
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	0402 (1006 Metric)
Supplier Device Package	DFN1006-2A
