VBUS05N1-HD1-G3-08

In Stock: 1,975

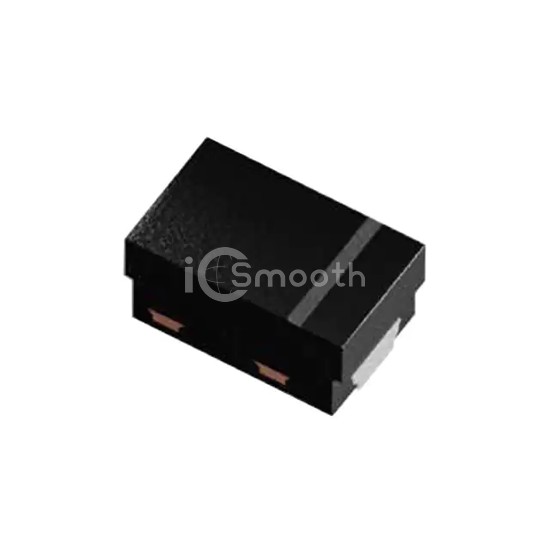

VBUS05N1-HD1-G3-08 - Vishay General Semiconductor - Diodes Division - TVS - Diodes
REF: VBUS05N1-HD1-G3-08 Vishay General Semiconductor - Diodes Division
VBUS05N1-HD1-G3-08

Vishay General Semiconductor - Diodes Division

5.5V;IR=0.1UA;IP=4A;P=90W;CD=0.4

VBUS05N1-HD1-G3-08 is a TVS - Diodes manufactured by Vishay General Semiconductor - Diodes Division. 5.5V;IR=0.1UA;IP=4A;P=90W;CD=0.4. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 0402 (1006 Metric).

Datasheet Request a Quote

In Stock: 1,975

Tiered Pricing USD
1+ $0.2600 —
10+ $0.1780 -32%
100+ $0.0880 -66%
500+ $0.0825 -68%
1,000+ $0.0770 -70%
2,000+ $0.0731 -72% BEST

Specifications

16 parameters
Product StatusActive
TypeZener
Unidirectional Channels1
Bidirectional Channels-
Voltage - Reverse Standoff (Typ)5.5V (Max)
Voltage - Breakdown (Min)7V
Voltage - Clamping (Max) @ Ipp15V
Current - Peak Pulse (10/1000µs)4A (8/20µs)
Power - Peak Pulse60W
Power Line ProtectionNo
ApplicationsHDMI, USB
Capacitance @ Frequency0.7pF @ 1MHz
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case0402 (1006 Metric)
Supplier Device PackageDFN1006-2A
