VBUS05B1-SD0-G4-08

In Stock: 260,382

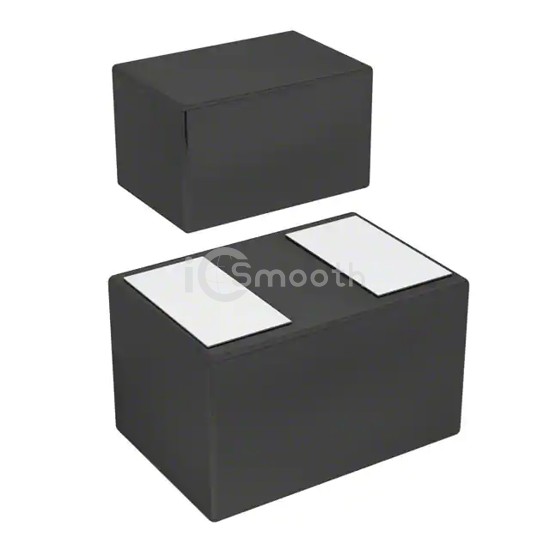

VBUS05B1-SD0-G4-08 - Vishay General Semiconductor - Diodes Division - TVS - Diodes
REF: VBUS05B1-SD0-G4-08 Vishay General Semiconductor - Diodes Division
VBUS05B1-SD0-G4-08

Vishay General Semiconductor - Diodes Division

TVS DIODE 5.5VWM 18VC CLP0603

VBUS05B1-SD0-G4-08 is a TVS - Diodes manufactured by Vishay General Semiconductor - Diodes Division. TVS DIODE 5.5VWM 18VC CLP0603. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 0201 (0603 Metric).

Datasheet Request a Quote

In Stock: 260,382

Tiered Pricing USD
1+ $0.1100 —
10+ $0.0640 -42%
100+ $0.0430 -61%
500+ $0.0410 -63%
1,000+ $0.0340 -69% BEST

Specifications

16 parameters
Product StatusActive
TypeZener
Unidirectional Channels-
Bidirectional Channels1
Voltage - Reverse Standoff (Typ)5.5V (Max)
Voltage - Breakdown (Min)6V
Voltage - Clamping (Max) @ Ipp18V
Current - Peak Pulse (10/1000µs)2.5A (8/20µs)
Power - Peak Pulse45W
Power Line ProtectionNo
ApplicationsGeneral Purpose
Capacitance @ Frequency0.29pF @ 1MHz
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case0201 (0603 Metric)
Supplier Device PackageCLP0603
