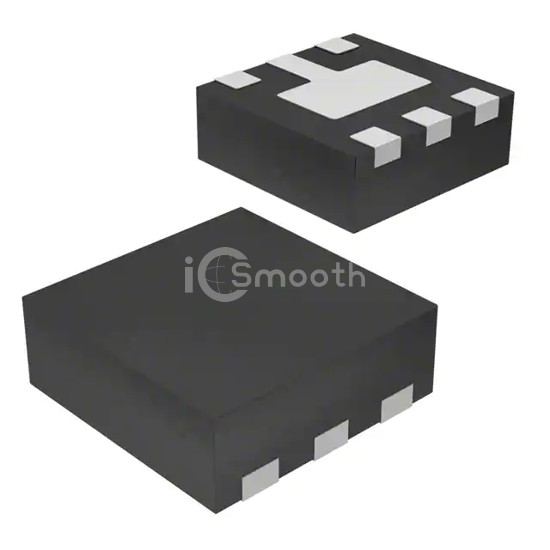

Name: VBUS054B-HS3-GS08
Brand: Vishay General Semiconductor - Diodes Division
SKU: VBUS054B-HS3-GS08
Availability: InStock

REF: VBUS054B-HS3-GS08 Vishay General Semiconductor - Diodes Division

VBUS054B-HS3-GS08

Vishay General Semiconductor - Diodes Division

TVS DIODE 5VWM 15VC LLP75-6A

VBUS054B-HS3-GS08 is a TVS - Diodes manufactured by Vishay General Semiconductor - Diodes Division. TVS DIODE 5VWM 15VC LLP75-6A. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), package / case 6-WFDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 5,772

Specifications

16 parameters

Product Status	Obsolete
Type	Steering (Rail to Rail)
Unidirectional Channels	4
Bidirectional Channels	-
Voltage - Reverse Standoff (Typ)	5V (Min)
Voltage - Breakdown (Min)	6.3V
Voltage - Clamping (Max) @ Ipp	15V
Current - Peak Pulse (10/1000µs)	3A (8/20µs)

Power - Peak Pulse	45W
Power Line Protection	Yes
Applications	General Purpose
Capacitance @ Frequency	-
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	6-WFDFN Exposed Pad
Supplier Device Package	LLP75-6A
