Name: V4PAL45HM3_A/I
Brand: Vishay General Semiconductor - Diodes Division
SKU: V4PAL45HM3_A/I
Price: 0.64 USD
Availability: InStock

REF: V4PAL45HM3_A/I Vishay General Semiconductor - Diodes Division

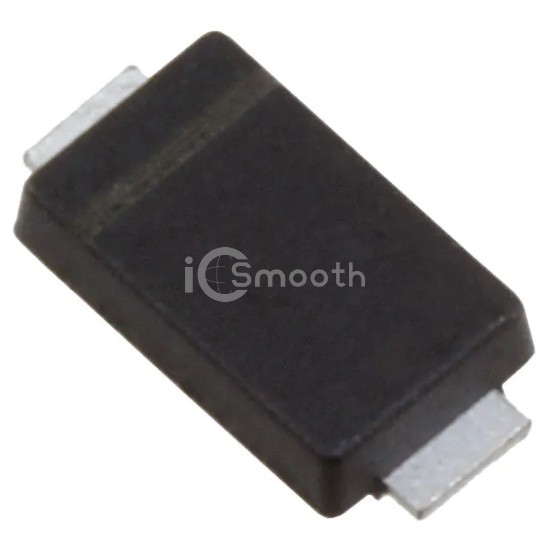

V4PAL45HM3_A/I

Vishay General Semiconductor - Diodes Division

DIODE SCHOTTKY 45V 3A DO221BC

V4PAL45HM3_A/I is a Diodes - Rectifiers - Single manufactured by Vishay General Semiconductor - Diodes Division. DIODE SCHOTTKY 45V 3A DO221BC. Key specifications: mounting type Surface Mount, package / case DO-221BC, SMA Flat Leads Exposed Pad.

Datasheet Request a Quote

In Stock: 36,519

Specifications

13 parameters

Product Status	Active
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	45 V
Current - Average Rectified (Io)	3A
Voltage - Forward (Vf) (Max) @ If	430 mV @ 2 A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)	-

Current - Reverse Leakage @ Vr	450 µA @ 45 V
Capacitance @ Vr, F	450pF @ 4V, 1MHz
Mounting Type	Surface Mount
Package / Case	DO-221BC, SMA Flat Leads Exposed Pad
Supplier Device Package	DO-221BC (SMPA)
Operating Temperature - Junction	-40°C ~ 150°C
