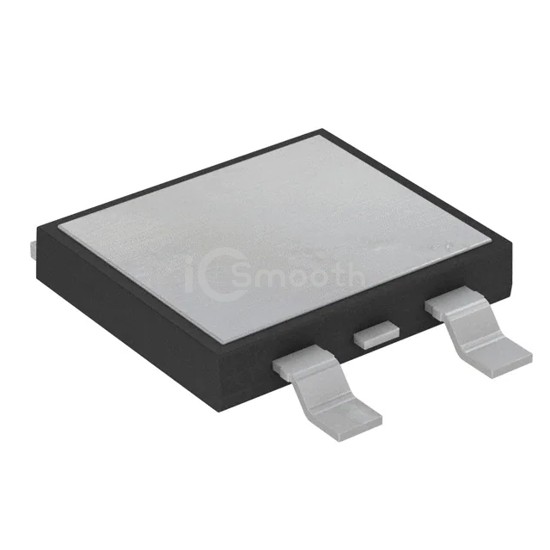

Name: V30DL45BP-M3/I
Brand: Vishay General Semiconductor - Diodes Division
SKU: V30DL45BP-M3/I
Price: 1.09 USD
Availability: InStock

REF: V30DL45BP-M3/I Vishay General Semiconductor - Diodes Division

V30DL45BP-M3/I

Vishay General Semiconductor - Diodes Division

DIODE SCHOTTKY 45V 30A SMPD

V30DL45BP-M3/I is a Diodes - Rectifiers - Single manufactured by Vishay General Semiconductor - Diodes Division. DIODE SCHOTTKY 45V 30A SMPD. Key specifications: mounting type Surface Mount, package / case TO-263-3, D²Pak (2 Leads + Tab) Variant.

Datasheet Request a Quote

In Stock: 1,511

Specifications

13 parameters

Product Status	Active
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	45 V
Current - Average Rectified (Io)	30A (DC)
Voltage - Forward (Vf) (Max) @ If	650 mV @ 30 A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)	-

Current - Reverse Leakage @ Vr	3 mA @ 45 V
Capacitance @ Vr, F	-
Mounting Type	Surface Mount
Package / Case	TO-263-3, D²Pak (2 Leads + Tab) Variant
Supplier Device Package	SMPD
Operating Temperature - Junction	-40°C ~ 150°C
