Name: UG30CPT-E3/45
Brand: Vishay General Semiconductor - Diodes Division
SKU: UG30CPT-E3/45
Price: 2.23 USD
Availability: InStock

REF: UG30CPT-E3/45 Vishay General Semiconductor - Diodes Division

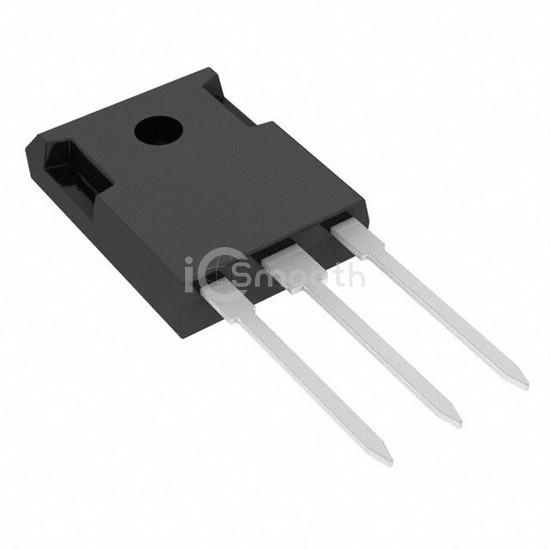

UG30CPT-E3/45

Vishay General Semiconductor - Diodes Division

DIODE ARRAY GP 150V 30A TO3P

UG30CPT-E3/45 is a Diodes - Rectifiers - Arrays manufactured by Vishay General Semiconductor - Diodes Division. DIODE ARRAY GP 150V 30A TO3P. Key specifications: mounting type Through Hole, package / case TO-3P-3, SC-65-3.

Datasheet Request a Quote

In Stock: 2,136

Specifications

13 parameters

Product Status	Active
Diode Configuration	1 Pair Common Cathode
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	150 V
Current - Average Rectified (Io) (per Diode)	30A
Voltage - Forward (Vf) (Max) @ If	1.15 V @ 30 A
Speed	Fast Recovery =< 500ns, > 200mA (Io)

Reverse Recovery Time (trr)	35 ns
Current - Reverse Leakage @ Vr	15 µA @ 150 V
Operating Temperature - Junction	-65°C ~ 150°C
Mounting Type	Through Hole
Package / Case	TO-3P-3, SC-65-3
Supplier Device Package	TO-247AD (TO-3P)
