UF5405-E3/54

In Stock: 9,531

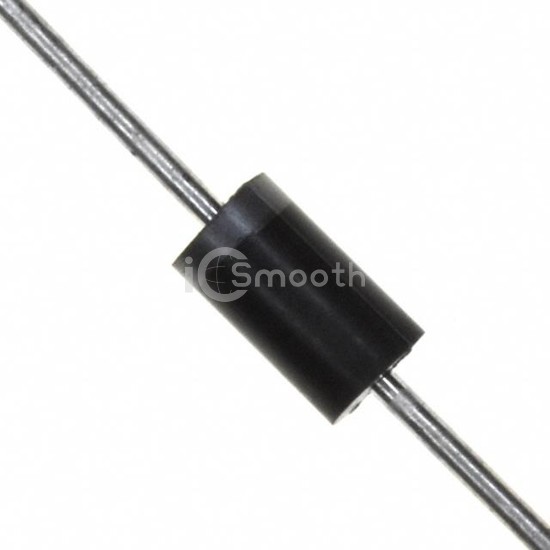

UF5405-E3/54 - Vishay General Semiconductor - Diodes Division - Diodes - Rectifiers - Single
REF: UF5405-E3/54 Vishay General Semiconductor - Diodes Division
UF5405-E3/54

Vishay General Semiconductor - Diodes Division

DIODE GEN PURP 500V 3A DO201AD

UF5405-E3/54 is a Diodes - Rectifiers - Single manufactured by Vishay General Semiconductor - Diodes Division. DIODE GEN PURP 500V 3A DO201AD. Key specifications: mounting type Through Hole, package / case DO-201AD, Axial.

Datasheet Request a Quote

In Stock: 9,531

Specifications

13 parameters
Product StatusActive
Diode TypeStandard
Voltage - DC Reverse (Vr) (Max)500 V
Current - Average Rectified (Io)3A
Voltage - Forward (Vf) (Max) @ If1.7 V @ 3 A
SpeedFast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)75 ns
Current - Reverse Leakage @ Vr10 µA @ 500 V
Capacitance @ Vr, F36pF @ 4V, 1MHz
Mounting TypeThrough Hole
Package / CaseDO-201AD, Axial
Supplier Device PackageDO-201AD
Operating Temperature - Junction-55°C ~ 150°C
