TZMB22-GS08

In Stock: 12,510

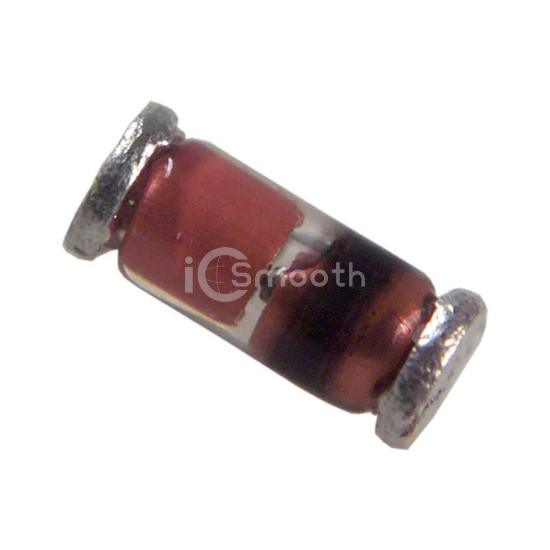

TZMB22-GS08 - Vishay General Semiconductor - Diodes Division - Diodes - Zener - Single
REF: TZMB22-GS08 Vishay General Semiconductor - Diodes Division
TZMB22-GS08

Vishay General Semiconductor - Diodes Division

DIODE ZENER 22V 500MW SOD80

TZMB22-GS08 is a Diodes - Zener - Single manufactured by Vishay General Semiconductor - Diodes Division. DIODE ZENER 22V 500MW SOD80. Key specifications: mounting type Surface Mount, operating temperature -65°C ~ 175°C, package / case DO-213AC, MINI-MELF, SOD-80, power - max 500 mW.

Datasheet Request a Quote

In Stock: 12,510

Specifications

11 parameters
Product StatusActive
Voltage - Zener (Nom) (Vz)22 V
Tolerance±2%
Power - Max500 mW
Impedance (Max) (Zzt)55 Ohms
Current - Reverse Leakage @ Vr100 nA @ 16 V
Voltage - Forward (Vf) (Max) @ If1.5 V @ 200 mA
Operating Temperature-65°C ~ 175°C
Mounting TypeSurface Mount
Package / CaseDO-213AC, MINI-MELF, SOD-80
Supplier Device PackageSOD-80 MiniMELF
