Name: TPSMC16AHE3/9AT
Brand: Vishay General Semiconductor - Diodes Division
SKU: TPSMC16AHE3/9AT
Price: 0.30 USD
Availability: InStock

REF: TPSMC16AHE3/9AT Vishay General Semiconductor - Diodes Division

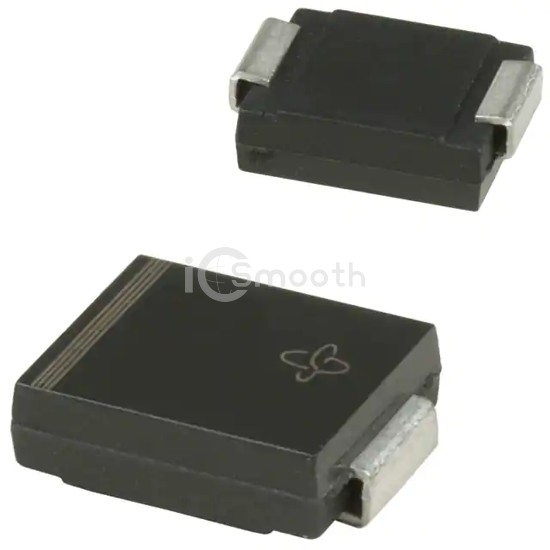

TPSMC16AHE3/9AT

Vishay General Semiconductor - Diodes Division

TVS DIODE 13.6VWM 22.5VC DO214AB

TPSMC16AHE3/9AT is a TVS - Diodes manufactured by Vishay General Semiconductor - Diodes Division. TVS DIODE 13.6VWM 22.5VC DO214AB. Key specifications: mounting type Surface Mount, operating temperature -65°C ~ 185°C (TJ), package / case DO-214AB, SMC.

Datasheet Request a Quote

In Stock: 3,071

Tiered Pricing USD

3,500+ $0.2997 —

7,000+ $0.2855 -5% BEST

Specifications

16 parameters

Product Status	Obsolete
Type	Zener
Unidirectional Channels	1
Bidirectional Channels	-
Voltage - Reverse Standoff (Typ)	13.6V
Voltage - Breakdown (Min)	15.2V
Voltage - Clamping (Max) @ Ipp	22.5V
Current - Peak Pulse (10/1000µs)	66.7A

Power - Peak Pulse	1500W (1.5kW)
Power Line Protection	No
Applications	Automotive
Capacitance @ Frequency	-
Operating Temperature	-65°C ~ 185°C (TJ)
Mounting Type	Surface Mount
Package / Case	DO-214AB, SMC
Supplier Device Package	DO-214AB (SMCJ)
