TPSMA9.1HE3_A/H

In Stock: 2,364

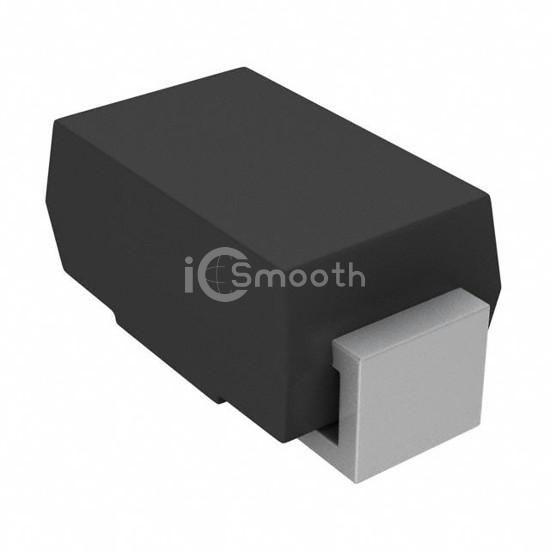

TPSMA9.1HE3_A/H - Vishay General Semiconductor - Diodes Division - TVS - Diodes
REF: TPSMA9.1HE3_A/H Vishay General Semiconductor - Diodes Division
TPSMA9.1HE3_A/H

Vishay General Semiconductor - Diodes Division

TVS DIODE 7.37VWM 13.8VC DO214AC

TPSMA9.1HE3_A/H is a TVS - Diodes manufactured by Vishay General Semiconductor - Diodes Division. TVS DIODE 7.37VWM 13.8VC DO214AC. Key specifications: mounting type Surface Mount, operating temperature -65°C ~ 185°C (TJ), package / case DO-214AC, SMA.

Datasheet Request a Quote

In Stock: 2,364

Tiered Pricing USD
3,600+ $0.2083 —
5,400+ $0.1995 -4%
9,000+ $0.1895 -9%
12,600+ $0.1875 -10% BEST

Specifications

16 parameters
Product StatusObsolete
TypeZener
Unidirectional Channels1
Bidirectional Channels-
Voltage - Reverse Standoff (Typ)7.37V
Voltage - Breakdown (Min)8.19V
Voltage - Clamping (Max) @ Ipp13.8V
Current - Peak Pulse (10/1000µs)29A
Power - Peak Pulse400W
Power Line ProtectionNo
ApplicationsAutomotive
Capacitance @ Frequency-
Operating Temperature-65°C ~ 185°C (TJ)
Mounting TypeSurface Mount
Package / CaseDO-214AC, SMA
Supplier Device PackageDO-214AC (SMA)
