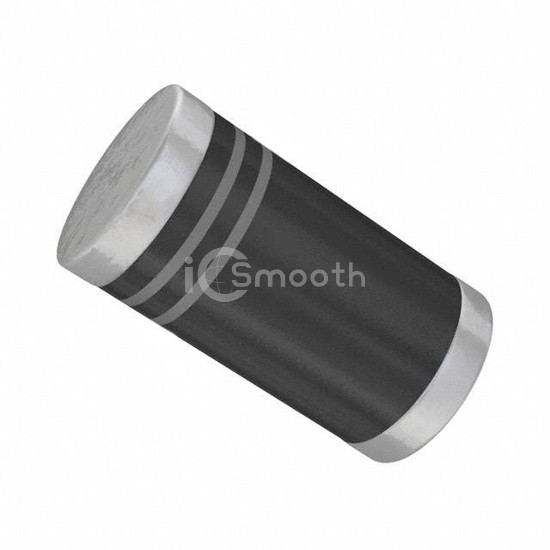

Name: TGL41-6.8-E3/97
Brand: Vishay General Semiconductor - Diodes Division
SKU: TGL41-6.8-E3/97
Availability: InStock

REF: TGL41-6.8-E3/97 Vishay General Semiconductor - Diodes Division

TGL41-6.8-E3/97

Vishay General Semiconductor - Diodes Division

TVS DIODE 5.5VWM 10.8VC GL41

TGL41-6.8-E3/97 is a TVS - Diodes manufactured by Vishay General Semiconductor - Diodes Division. TVS DIODE 5.5VWM 10.8VC GL41. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case DO-213AB, MELF.

Datasheet Request a Quote

In Stock: 9,620

Specifications

16 parameters

Product Status	Obsolete
Type	Zener
Unidirectional Channels	1
Bidirectional Channels	-
Voltage - Reverse Standoff (Typ)	5.5V
Voltage - Breakdown (Min)	6.12V
Voltage - Clamping (Max) @ Ipp	10.8V
Current - Peak Pulse (10/1000µs)	37A

Power - Peak Pulse	400W
Power Line Protection	No
Applications	General Purpose
Capacitance @ Frequency	-
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	DO-213AB, MELF
Supplier Device Package	GL41 (DO-213AB)
