SS22SHE3_B/H

In Stock: 8,616

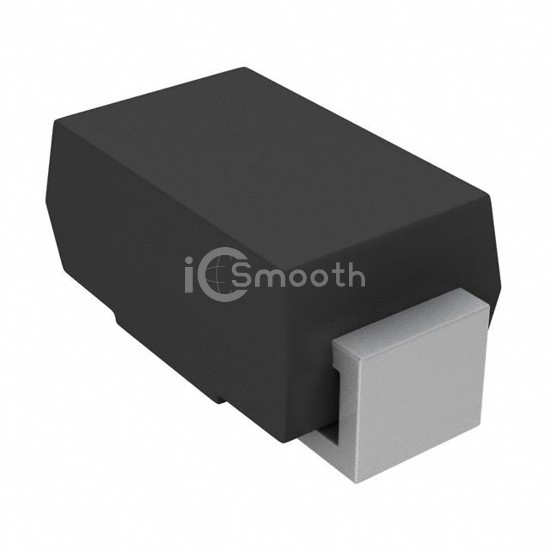

SS22SHE3_B/H - Vishay General Semiconductor - Diodes Division - Diodes - Rectifiers - Single
REF: SS22SHE3_B/H Vishay General Semiconductor - Diodes Division
SS22SHE3_B/H

Vishay General Semiconductor - Diodes Division

DIODE SCHOTTKY 20V 2A DO214AC

SS22SHE3_B/H is a Diodes - Rectifiers - Single manufactured by Vishay General Semiconductor - Diodes Division. DIODE SCHOTTKY 20V 2A DO214AC. Key specifications: mounting type Surface Mount, package / case DO-214AC, SMA.

Datasheet Request a Quote

In Stock: 8,616

Specifications

13 parameters
Product StatusActive
Diode TypeSchottky
Voltage - DC Reverse (Vr) (Max)20 V
Current - Average Rectified (Io)2A
Voltage - Forward (Vf) (Max) @ If550 mV @ 2 A
SpeedFast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)-
Current - Reverse Leakage @ Vr200 µA @ 20 V
Capacitance @ Vr, F130pF @ 4V, 1MHz
Mounting TypeSurface Mount
Package / CaseDO-214AC, SMA
Supplier Device PackageDO-214AC (SMA)
Operating Temperature - Junction-55°C ~ 150°C
