Name: SMCJ90CAHM3_A/H
Brand: Vishay General Semiconductor - Diodes Division
SKU: SMCJ90CAHM3_A/H
Price: 1.05 USD
Availability: InStock

REF: SMCJ90CAHM3_A/H Vishay General Semiconductor - Diodes Division

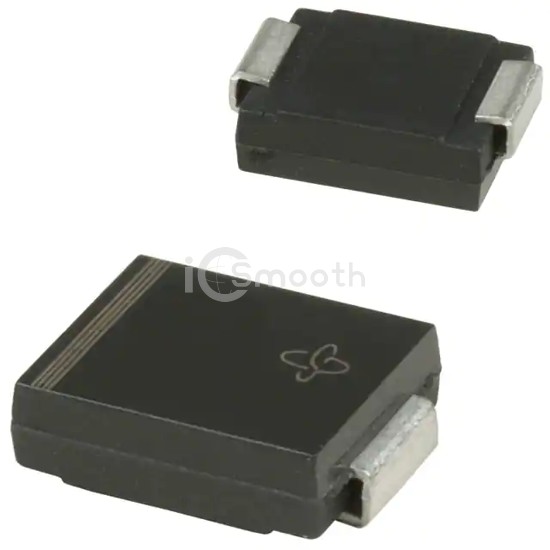

SMCJ90CAHM3_A/H

Vishay General Semiconductor - Diodes Division

TVS DIODE 90VWM 146VC DO214AB

SMCJ90CAHM3_A/H is a TVS - Diodes manufactured by Vishay General Semiconductor - Diodes Division. TVS DIODE 90VWM 146VC DO214AB. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case DO-214AB, SMC.

Datasheet Request a Quote

In Stock: 9,503

Tiered Pricing USD

1+ $1.0500 —

10+ $0.8630 -18%

100+ $0.5888 -44% BEST

Specifications

16 parameters

Product Status	Active
Type	Zener
Unidirectional Channels	-
Bidirectional Channels	1
Voltage - Reverse Standoff (Typ)	90V
Voltage - Breakdown (Min)	100V
Voltage - Clamping (Max) @ Ipp	146V
Current - Peak Pulse (10/1000µs)	10.3A

Power - Peak Pulse	1500W (1.5kW)
Power Line Protection	No
Applications	Automotive, Telecom
Capacitance @ Frequency	-
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	DO-214AB, SMC
Supplier Device Package	DO-214AB (SMC)
