SMAJ8.5CAHE3_A/H

In Stock: 6,531

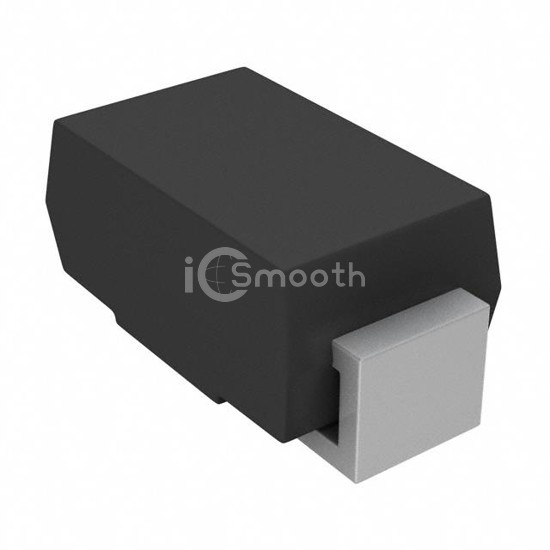

SMAJ8.5CAHE3_A/H - Vishay General Semiconductor - Diodes Division - TVS - Diodes
REF: SMAJ8.5CAHE3_A/H Vishay General Semiconductor - Diodes Division
SMAJ8.5CAHE3_A/H

Vishay General Semiconductor - Diodes Division

TVS DIODE 8.5VWM 14.4VC DO214AC

SMAJ8.5CAHE3_A/H is a TVS - Diodes manufactured by Vishay General Semiconductor - Diodes Division. TVS DIODE 8.5VWM 14.4VC DO214AC. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case DO-214AC, SMA.

Datasheet Request a Quote

In Stock: 6,531

Tiered Pricing USD
1,800+ $0.1487 —
3,600+ $0.1349 -9%
5,400+ $0.1279 -14%
9,000+ $0.1200 -19%
12,600+ $0.1050 -29%
18,000+ $0.1000 -33% BEST

Specifications

16 parameters
Product StatusActive
TypeZener
Unidirectional Channels-
Bidirectional Channels1
Voltage - Reverse Standoff (Typ)8.5V
Voltage - Breakdown (Min)9.44V
Voltage - Clamping (Max) @ Ipp14.4V
Current - Peak Pulse (10/1000µs)27.8A
Power - Peak Pulse400W
Power Line ProtectionNo
ApplicationsAutomotive
Capacitance @ Frequency-
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / CaseDO-214AC, SMA
Supplier Device PackageDO-214AC (SMA)
