SMA5J5.0AHM3_A/H

In Stock: 2,776

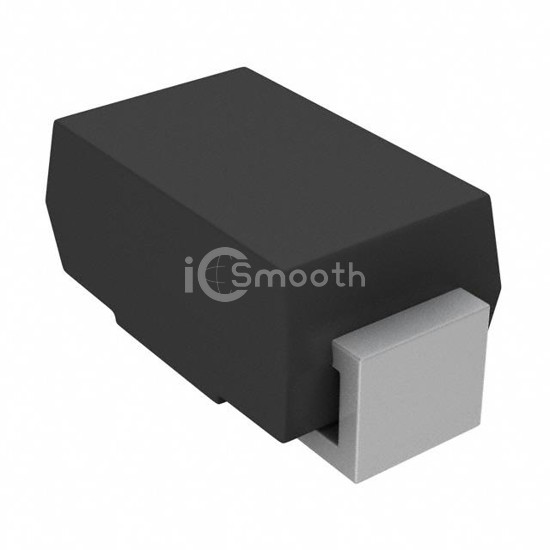

SMA5J5.0AHM3_A/H - Vishay General Semiconductor - Diodes Division - TVS - Diodes
REF: SMA5J5.0AHM3_A/H Vishay General Semiconductor - Diodes Division
SMA5J5.0AHM3_A/H

Vishay General Semiconductor - Diodes Division

TVS DIODE 5VWM 9.2VC DO214AC

SMA5J5.0AHM3_A/H is a TVS - Diodes manufactured by Vishay General Semiconductor - Diodes Division. TVS DIODE 5VWM 9.2VC DO214AC. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case DO-214AC, SMA.

Datasheet Request a Quote

In Stock: 2,776

Tiered Pricing USD
1+ $0.8700 —
10+ $0.5440 -37%
100+ $0.3529 -59%
500+ $0.2705 -69% BEST

Specifications

16 parameters
Product StatusActive
TypeZener
Unidirectional Channels1
Bidirectional Channels-
Voltage - Reverse Standoff (Typ)5V
Voltage - Breakdown (Min)6.4V
Voltage - Clamping (Max) @ Ipp9.2V
Current - Peak Pulse (10/1000µs)54.3A
Power - Peak Pulse500W
Power Line ProtectionNo
ApplicationsAutomotive, Telecom
Capacitance @ Frequency-
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / CaseDO-214AC, SMA
Supplier Device PackageDO-214AC (SMA)
