Name: SM8S16ATHE3/I
Brand: Vishay General Semiconductor - Diodes Division
SKU: SM8S16ATHE3/I
Price: 2.86 USD
Availability: InStock

REF: SM8S16ATHE3/I Vishay General Semiconductor - Diodes Division

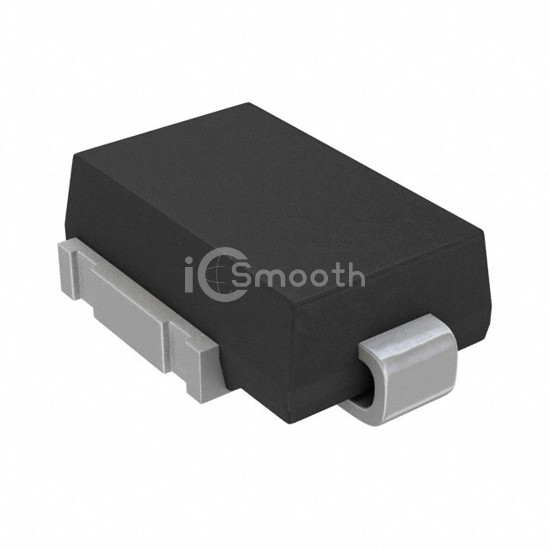

SM8S16ATHE3/I

Vishay General Semiconductor - Diodes Division

TVS DIODE 16VWM 26VC DO218AC

SM8S16ATHE3/I is a TVS - Diodes manufactured by Vishay General Semiconductor - Diodes Division. TVS DIODE 16VWM 26VC DO218AC. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case DO-218AC.

Datasheet Request a Quote

In Stock: 2,221

Specifications

16 parameters

Product Status	Active
Type	Zener
Unidirectional Channels	1
Bidirectional Channels	-
Voltage - Reverse Standoff (Typ)	16V
Voltage - Breakdown (Min)	17.8V
Voltage - Clamping (Max) @ Ipp	26V
Current - Peak Pulse (10/1000µs)	254A

Power - Peak Pulse	6600W (6.6kW)
Power Line Protection	No
Applications	Automotive
Capacitance @ Frequency	-
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Package / Case	DO-218AC
Supplier Device Package	DO-218AC
