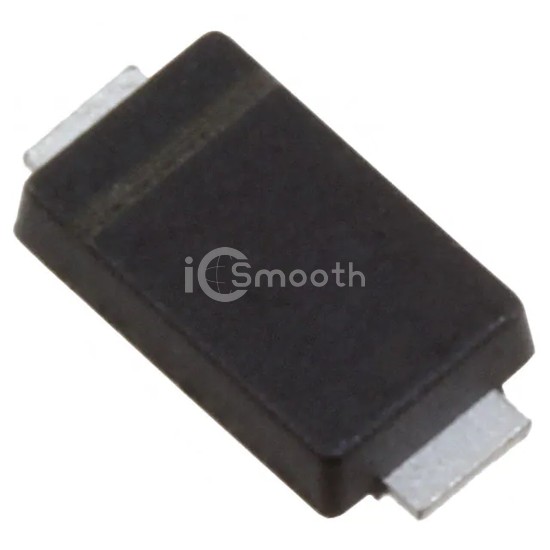

Name: SE50PAGHM3/I
Brand: Vishay General Semiconductor - Diodes Division
SKU: SE50PAGHM3/I
Price: 0.53 USD
Availability: InStock

REF: SE50PAGHM3/I Vishay General Semiconductor - Diodes Division

SE50PAGHM3/I

Vishay General Semiconductor - Diodes Division

DIODE GEN PURP 400V 5A DO221BC

SE50PAGHM3/I is a Diodes - Rectifiers - Single manufactured by Vishay General Semiconductor - Diodes Division. DIODE GEN PURP 400V 5A DO221BC. Key specifications: mounting type Surface Mount, package / case DO-221BC, SMA Flat Leads Exposed Pad.

Datasheet Request a Quote

In Stock: 8,946

Specifications

13 parameters

Product Status	Active
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	400 V
Current - Average Rectified (Io)	5A
Voltage - Forward (Vf) (Max) @ If	1.16 V @ 5 A
Speed	Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr)	2 µs

Current - Reverse Leakage @ Vr	10 µA @ 400 V
Capacitance @ Vr, F	32pF @ 4V, 1MHz
Mounting Type	Surface Mount
Package / Case	DO-221BC, SMA Flat Leads Exposed Pad
Supplier Device Package	DO-221BC (SMPA)
Operating Temperature - Junction	-55°C ~ 175°C
