Name: SE30PAJ-M3/I
Brand: Vishay General Semiconductor - Diodes Division
SKU: SE30PAJ-M3/I
Price: 0.45 USD
Availability: InStock

REF: SE30PAJ-M3/I Vishay General Semiconductor - Diodes Division

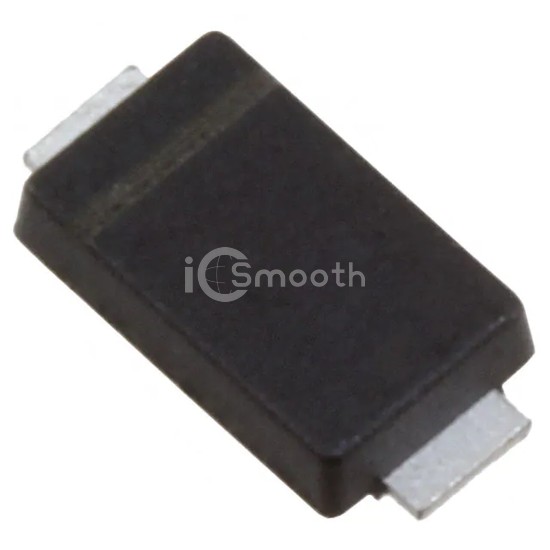

SE30PAJ-M3/I

Vishay General Semiconductor - Diodes Division

DIODE GEN PURP 600V 1.4A DO221BC

SE30PAJ-M3/I is a Diodes - Rectifiers - Single manufactured by Vishay General Semiconductor - Diodes Division. DIODE GEN PURP 600V 1.4A DO221BC. Key specifications: mounting type Surface Mount, package / case DO-221BC, SMA Flat Leads Exposed Pad.

Datasheet Request a Quote

In Stock: 6,658

Specifications

13 parameters

Product Status	Active
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	600 V
Current - Average Rectified (Io)	1.4A (DC)
Voltage - Forward (Vf) (Max) @ If	910 mV @ 1.5 A
Speed	Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr)	1.5 µs

Current - Reverse Leakage @ Vr	10 µA @ 600 V
Capacitance @ Vr, F	19pF @ 4V, 1MHz
Mounting Type	Surface Mount
Package / Case	DO-221BC, SMA Flat Leads Exposed Pad
Supplier Device Package	DO-221BC (SMPA)
Operating Temperature - Junction	-55°C ~ 175°C
