Name: SE30DT12HM3/I
Brand: Vishay General Semiconductor - Diodes Division
SKU: SE30DT12HM3/I
Price: 2.47 USD
Availability: InStock

REF: SE30DT12HM3/I Vishay General Semiconductor - Diodes Division

SE30DT12HM3/I

Vishay General Semiconductor - Diodes Division

1200V 30A SURFACE-MOUNT HIGH VOL

SE30DT12HM3/I is a Diodes - Rectifiers - Single manufactured by Vishay General Semiconductor - Diodes Division. 1200V 30A SURFACE-MOUNT HIGH VOL. Key specifications: mounting type Surface Mount, package / case TO-263-3, D²Pak (2 Leads + Tab) Variant.

Datasheet Request a Quote

In Stock: 8,573

Specifications

13 parameters

Product Status	Active
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	1200 V
Current - Average Rectified (Io)	30A (DC)
Voltage - Forward (Vf) (Max) @ If	1.29 V @ 30 A
Speed	Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr)	3.4 µs

Current - Reverse Leakage @ Vr	10 µA @ 1200 V
Capacitance @ Vr, F	132pF @ 4V, 1MHz
Mounting Type	Surface Mount

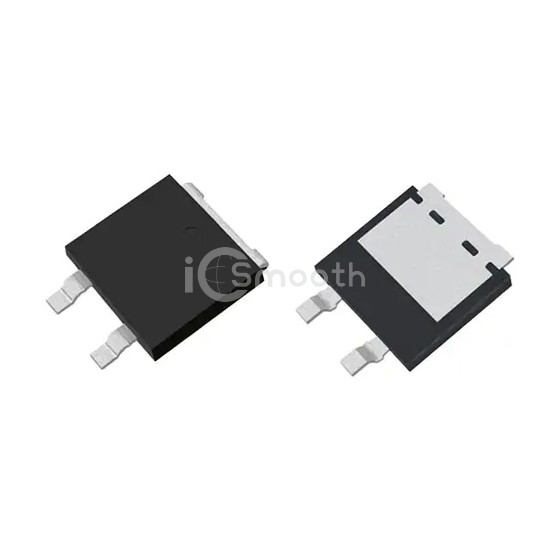

Package / Case	TO-263-3, D²Pak (2 Leads + Tab) Variant
Supplier Device Package	SMPD
Operating Temperature - Junction	-55°C ~ 175°C
