SE15PDHM3/85A

In Stock: 4,730

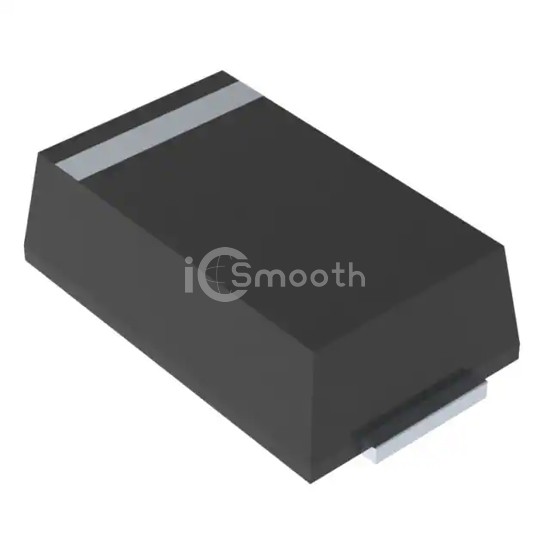

SE15PDHM3/85A - Vishay General Semiconductor - Diodes Division - Diodes - Rectifiers - Single
REF: SE15PDHM3/85A Vishay General Semiconductor - Diodes Division
SE15PDHM3/85A

Vishay General Semiconductor - Diodes Division

DIODE GEN PURP 200V 1.5A DO220AA

SE15PDHM3/85A is a Diodes - Rectifiers - Single manufactured by Vishay General Semiconductor - Diodes Division. DIODE GEN PURP 200V 1.5A DO220AA. Key specifications: mounting type Surface Mount, package / case DO-220AA.

Datasheet Request a Quote

In Stock: 4,730

Specifications

13 parameters
Product StatusActive
Diode TypeStandard
Voltage - DC Reverse (Vr) (Max)200 V
Current - Average Rectified (Io)1.5A
Voltage - Forward (Vf) (Max) @ If1.05 V @ 1.5 A
SpeedStandard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr)900 ns
Current - Reverse Leakage @ Vr5 µA @ 200 V
Capacitance @ Vr, F9.5pF @ 4V, 1MHz
Mounting TypeSurface Mount
Package / CaseDO-220AA
Supplier Device PackageDO-220AA (SMP)
Operating Temperature - Junction-55°C ~ 175°C
