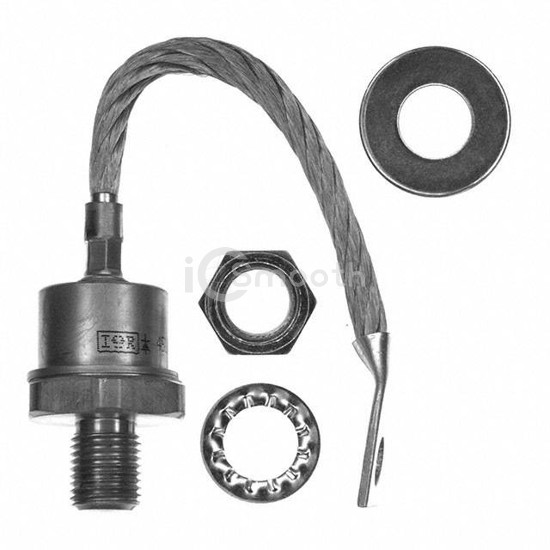

Name: SD103N10S10PV
Brand: Vishay General Semiconductor - Diodes Division
SKU: SD103N10S10PV
Availability: InStock

REF: SD103N10S10PV Vishay General Semiconductor - Diodes Division

SD103N10S10PV

Vishay General Semiconductor - Diodes Division

DIODE GEN PURP 1KV 110A DO205

SD103N10S10PV is a Diodes - Rectifiers - Single manufactured by Vishay General Semiconductor - Diodes Division. DIODE GEN PURP 1KV 110A DO205. Key specifications: mounting type Stud Mount, package / case DO-205AC, DO-30, Stud.

Datasheet Request a Quote

In Stock: 2,655

Specifications

13 parameters

Product Status	Obsolete
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	1000 V
Current - Average Rectified (Io)	110A
Voltage - Forward (Vf) (Max) @ If	2.23 V @ 345 A
Speed	Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr)	1 µs

Current - Reverse Leakage @ Vr	35 mA @ 1000 V
Capacitance @ Vr, F	-
Mounting Type	Stud Mount
Package / Case	DO-205AC, DO-30, Stud
Supplier Device Package	DO-205AC (DO-30)
Operating Temperature - Junction	-40°C ~ 125°C
