SD103AW-E3-08

In Stock: 6,002

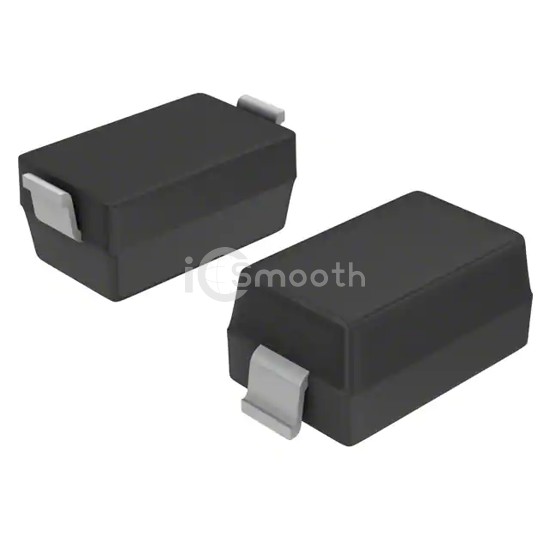

SD103AW-E3-08 - Vishay General Semiconductor - Diodes Division - Diodes - Rectifiers - Single
REF: SD103AW-E3-08 Vishay General Semiconductor - Diodes Division
SD103AW-E3-08

Vishay General Semiconductor - Diodes Division

DIODE SCHOTTKY 40V SOD123

SD103AW-E3-08 is a Diodes - Rectifiers - Single manufactured by Vishay General Semiconductor - Diodes Division. DIODE SCHOTTKY 40V SOD123. Key specifications: mounting type Surface Mount, package / case SOD-123.

Datasheet Request a Quote

In Stock: 6,002

Specifications

13 parameters
Product StatusActive
Diode TypeSchottky
Voltage - DC Reverse (Vr) (Max)40 V
Current - Average Rectified (Io)-
Voltage - Forward (Vf) (Max) @ If600 mV @ 200 mA
SpeedFast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)10 ns
Current - Reverse Leakage @ Vr5 µA @ 30 V
Capacitance @ Vr, F50pF @ 0V, 1MHz
Mounting TypeSurface Mount
Package / CaseSOD-123
Supplier Device PackageSOD-123
Operating Temperature - Junction125°C (Max)
